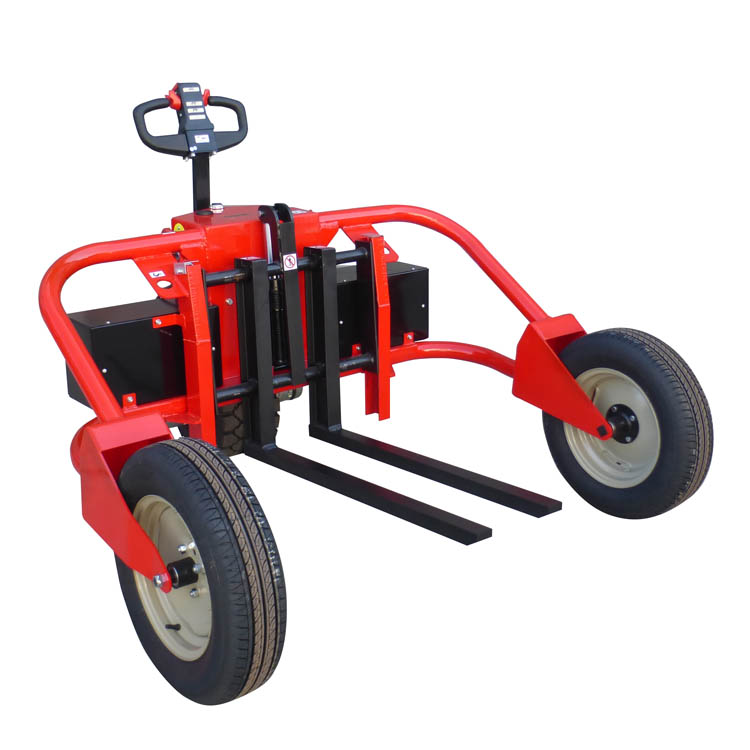

Electric Rough Terrain Pallet Truck This heavy duty electric rough terrain pallet truck has two 12V batteries which allows it to be used as a fully powered pallet truck. Electric lift and drive 2 heavy duty batteries for full day operation Built-in charger Great manoeuvrability Adjustable width over forks Wheels fitted onto sealed bearings Pneumatic tyres Special sizes can be offered 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model TNE1200 1DC TNE1200-1AC TNE1200 2DC Capacity 1200kg 1200kg 1200kg Drive Wheel Motor 1 x 500 DC 1 x 1000 AC 2 x 500 DC Battery 2 x 60Ah 2 x 100Ah 2 x 100Ah Load Centre 500 mm Length of Forks 890 mm Width over Forks Adjustable 160 – 560 mm Max. Pallet Sizes 1200 x 1200 mm Straddle Gaps 1250 mm Overall widths 1640 mm Overall Length 1400 mm Lowered Fork Height 50 mm Raised Fork Height 220 / 280 mm Wheels Pneumatic and Super Elastic Gradeability: Gradient TNE1200-1DC TNE1200-1AC TNE1200-2DC 0% 1200kg 1200kg 1200kg 1% 1200kg 1200kg 1200kg 3% – 1200kg 1200kg 4% 800kg – 1200kg 5% – – 1200kg 6% – 800kg 1200kg 8% – – 1200kg 10% – 500kg 1200kg 14% 300kg – – 15% – – 800kg 18% – 300kg – 20% 0kg – – 23% 0kg – 500kg 25% 0kg 0kg – 30% 0kg 0kg 300kg 45% 0kg 0kg 0kg NOTE: Please allow approx. 6 weeks for delivery
