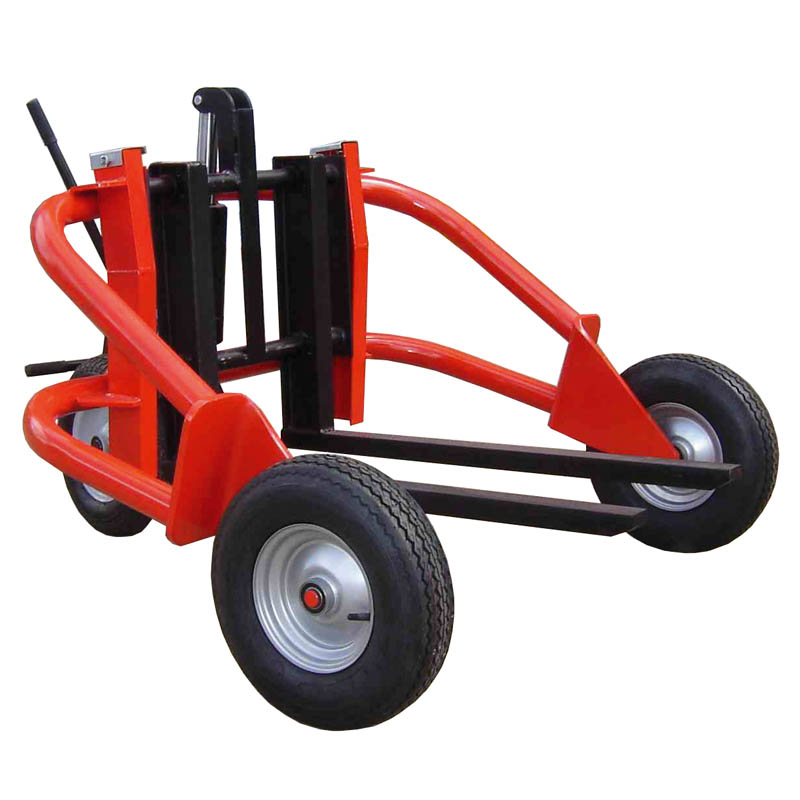

Narrow Rough Terrain Pallet Trucks This special narrow rough terrain pallet truck is available in 3 widths and is designed to handle pallets up to 800, 1000 or 1200mm wide. This model has all the heavy duty features of the standard TNV1500S rough terrain pallet truck, but offers a more manouverable truck for handling pallets. Standard straddle gaps to suit 800, 1000 or 1200mm pallets. We are able to offer even narrower (and wider) rough terrain pallet trucks. Technical Specifications: Model TNN1500/S-800 TNN1500/S-1000 TNN1500/S-1200 Capacity 1500kg Load Centre 500 mm Length of Forks 890 mm Width over Forks Adjustable 180 – 580 mm Max. Pallet Sizes 800 x 1200 mm 1000 x 1200 mm 1200 x 1000 mm Straddle Gaps 850 mm 1050 mm 1250 mm Overall widths 1120 mm 1320 mm 1520 mm Overall Length 1430 mm Lowered Fork Height 50 mm Raised Fork Height 230 / 285 mm Wheels Pneumatic ø 380 / ø 400 mm OPTIONAL HEIGHT ADJUSTABLE FORKS Ideal for lifting and moving anchor blocks No. of Fork Height Levels 5 Distance between Levels 100mm Top Fork Level Raised Height (front/back) 695 / 635 mm Lowered Height 455mm Bottom Fork Level Raised Height (front/back) 305 / 235 mm Lowered Height ground level NOTE: An optional Electric Drive Conversion Kit converts this pallet truck from manual to electric drive. See the last image for more details.
