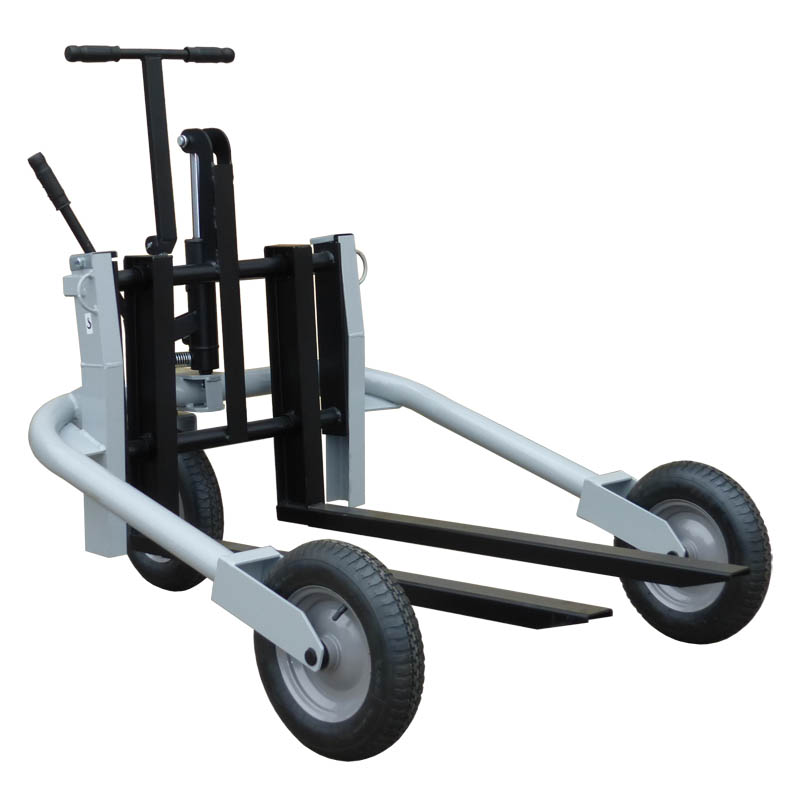

Mini Rough Terrain Pallet Trucks These two mini rough terrain pallet truck models are designed for use with either Euro pallets or GKN pallets. Transports loads on uneven ground Minimum maintenance required Great manoeuvarability Adjustable width over forks Wheels fitted onto sealed bearings Large diameter terrain wheels Technical Specifications: Model: TNV500-EURO TNV500-GKN Capacity: 500kg 500kg Load Centre: 400 mm 400 mm Length of Forks: 1100 mm 1100 mm Adjustable Forks: 220 – 560 mm 220 – 560 mm Max. Pallet Size: 800 x 1200 mm 1000 x 1200 mm Straddle Gap: 850 mm 1050 mm Lowered Fork Height: 45 mm 45 mm Raised Fork Height: 250 mm 250 mm Overall Length: 1580 mm 1580 mm Overall width: 1090 mm 1290 mm
