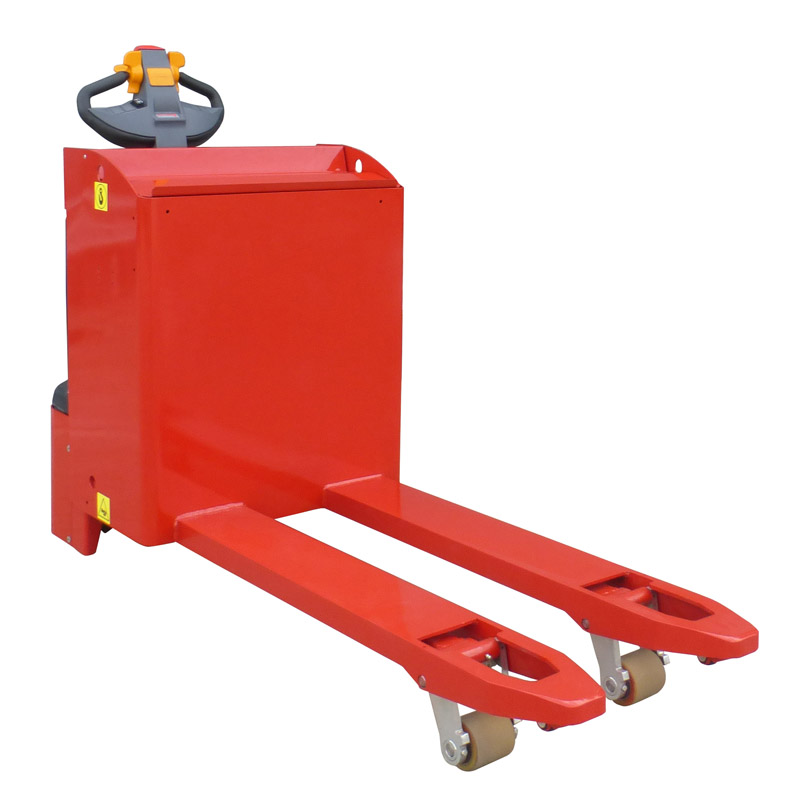

3 Ton Powered Pallet Truck Central tiller, Pedestrian controlled AC electronic controller up to 24V 250A AC drive motor with series excite system up to 24V 1200W with electromagnetic brake Hydraulic unit up to 24V 800W with electric descending valve Battery charge indicator with LCD hours counter and block of the forks with flat battery Speed selector to operate with the tiller in the upright position Width over forks 565 mm, forks lifting height of 120 mm Custom sizes available on request Technical Specifications: Model LiTPL30 Drive Electric Operator Type Pedestrian Capacity 3000kg Load Centre Distance 600 mm Wheel Base 1439 mm Weight incl. Battery 311 kg Tyres Polyurethane Tyre Size, at front 80 x 90 mm Tyre Size, at rear 250 x 79 mm Additional Wheels (dimensions) 100 x 40 mm Wheels, number front / rear (x=traction wheels) 1x 1/2 Track Width, front 480 mm Track Width, rear 560 mm Lift Height 120 mm Height of tiller in drive position min./max. 726 / 1026 mm Lowered Height 85 mm Overall Length 1795 mm Length incl. back of forks 645 mm Total Width 710 mm Fork Dimensions 165 x 50 x 1150 mm Aisle Width 2045 mm Turning Radius 1606 mm Travel Speed, w. / w.o. load 4,8 / 5,5 km/h Lift Speed, w. / w.o. load 0,014 / 0,023 Lower Speed, w. / w.o load 0,045 / 0,044 Max. Gradeability, laden / unladen 7% 17% Service Brake Electromagnetic Drive Motor rating 1200W DC Lift Motor 800W DC Battery Voltage 24V Drive Control 24V 250A Sound pressure level at driver’s ear 65dB
