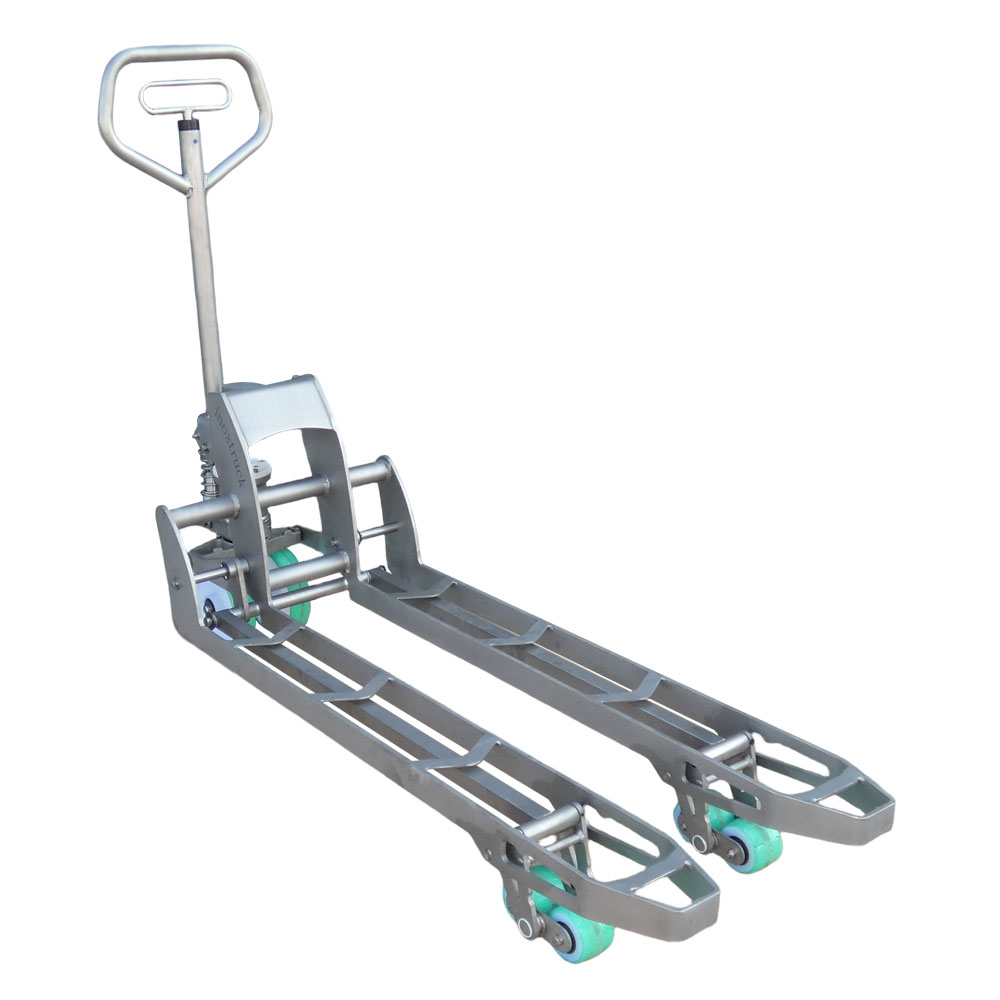

1.5T Stainless Steel Pallet Truck The Inoxtruck Stainless Steel pallet truck is designed for use in the food, agricultural and pharmaceutical industries. It is suitable for handling dairy, seafood and meat products. This stainless steel pallet truck is ideal for damp and harsh environments where strict hygiene compliance is required. High resistance to corrosion Manufactured 100% in stainless steel AISI 304L including all hydraulic equipment The easy access to all pallet truck parts allows for complete cleaning Easy access to all pallet truck parts also prevents hiding places for bacteria Ergonomic handle design for easy handling All bearings are sealed, waterproof and self-lubricated Minimum maintenance Technical Specifications: 1.4 Operator type: manual, pedestrian, operator standing, seated Manual 1.5 Load capacity Q kg 1500 1.6 Load center distance C mm 600 1.8 Load wheel axle fork face (forks lowered) X mm 955 1.9 Wheelbase Y m 1220 1.10 Chassis AISI 304L 1.11 Sheet AISI 304L Weight 2.1 Truck weight with nominal load kg 1570 2.2 Axle loadings with nominal load kg 502/1070 2.3 Axle loadings without load kg 49/23 Wheels and Drive Train 3.1 Tyres: PT=Polyurethane, PA=Polyamide (nylon), Vul=Vulkollan, drive/load side PA/PA 3.2 Tyre dimensions, drive side 200 X 50 3.3 Tyre dimensions, load side 80 X 67 3.5 Number of wheels, drive/load side (x=driven) 2/2 3.6 Track width (center of tyres), drive side b10 mm 138 3.7 Track width (center of tyres), load side b11 mm 360/388 Dimensions 4.4 Lift height h3 mm 120 4.9 Height of tiller arm (minimum/maximum) h14 mm 1200 4.15 Fork height, fully lowered h13 mm 90 4.19 Overall length I1 mm 1580 4.20 Length to fork face (includes fork thickness) I2 mm 420 4.22 Fork dimensions (thickness, width, length) s/e/l mm 55/160/1145 4.25 Outside width over forks (minimum/maximum) b5 mm 520 4.32 Ground clearance at center of wheelbase (forks lowered) m2 mm 35 4.34a Working aisle width (Ast) with 800 x 1200mm pallets, load lengthwise Ast mm 2090 4.35 Turning circle radius Wa mm 1420
