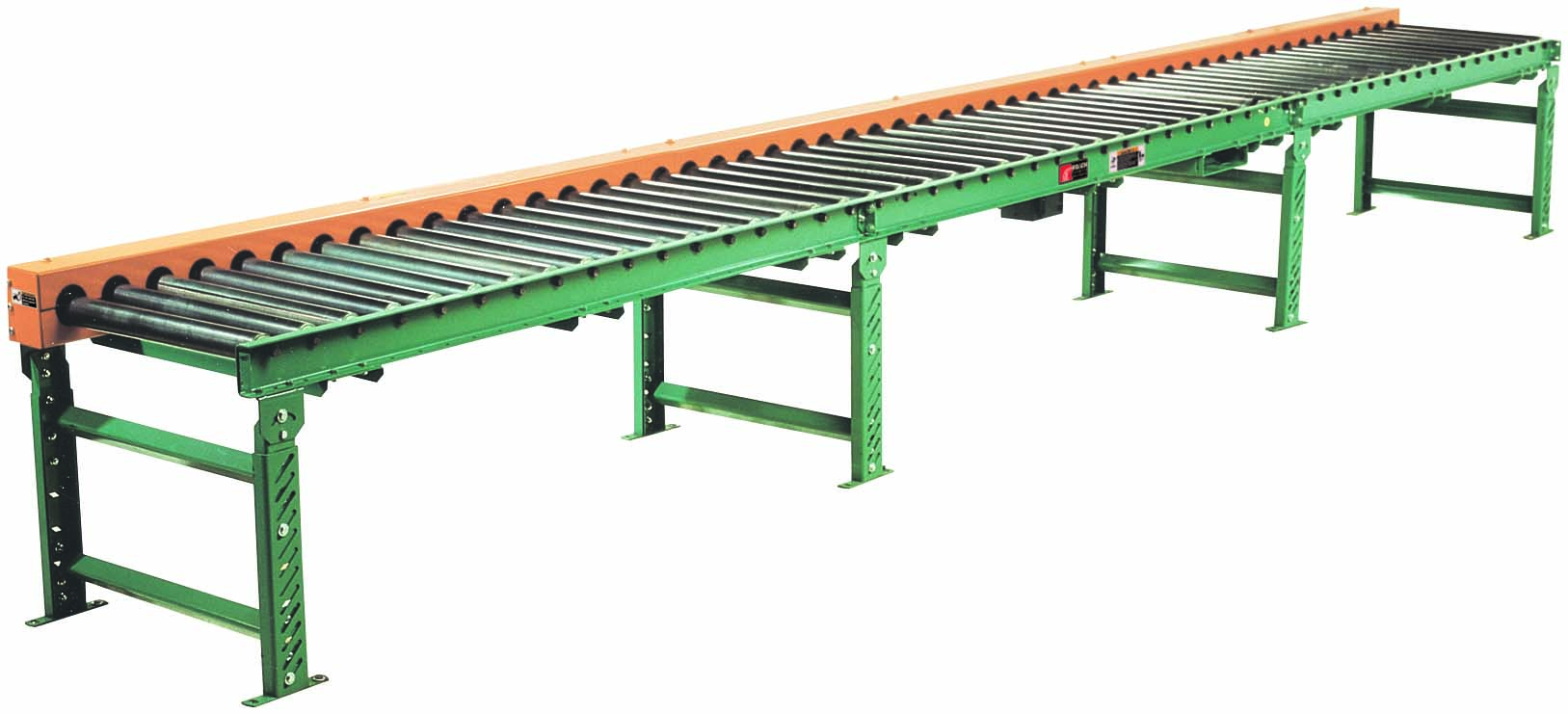

Roach Heavy Duty Chain Driven Live Roller Conveyor – 2 9/16″ dia

Description TREAD ROLLERS: 2-9/16″ dia. x 7 ga. steel rollers, model 297S with sprockets. CHAIN DRIVE: Roller to roller with No. 60 roller chain. CENTER DRIVE: Reversible drive either side mounted or underside mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units. ROLLER CENTERS: 3″, 4-1/2″, 6″, 9″ and 12″. BED: 4″ at 5.4 lbs. and 6″ at 8.2 lbs. structural steel channel frame. Bed sections attached with couplings and floor supports. SPEED: 35 FPM, constant. BEARINGS: Precision ABEC bearings. CHAIN GUARD: The chain drive is completely enclosed along the entire length of the conveyor. BED LENGTHS (4-1/2″ or 9″ RC): Intermediate bed section lengths 3′, 3′- 9″, 4′-6″, 5″, 6′-0″ 6′-9″ 7′-6″, 8′-3″, 9′ and 9′-9″ increments. Minimum overall conveyor length with drive 5′-3″. Maximum overall conveyor length: 58′-6″ with 4-1/2″ RC; 78′-0″ with 9″ RC. BED LENGTHS (6″ or 12″ RC): Intermediate bed section lengths are available in 1′-0″ increments. Minimum overall conveyor length with drive 5′-0″. Maximum overall conveyor length 80′-0″. MOTOR DRIVE: 3/4 HP, 230/460/3, 60 cycle, Super E right angle gear motor. ELECTRICAL CONTROLS: Optional.
