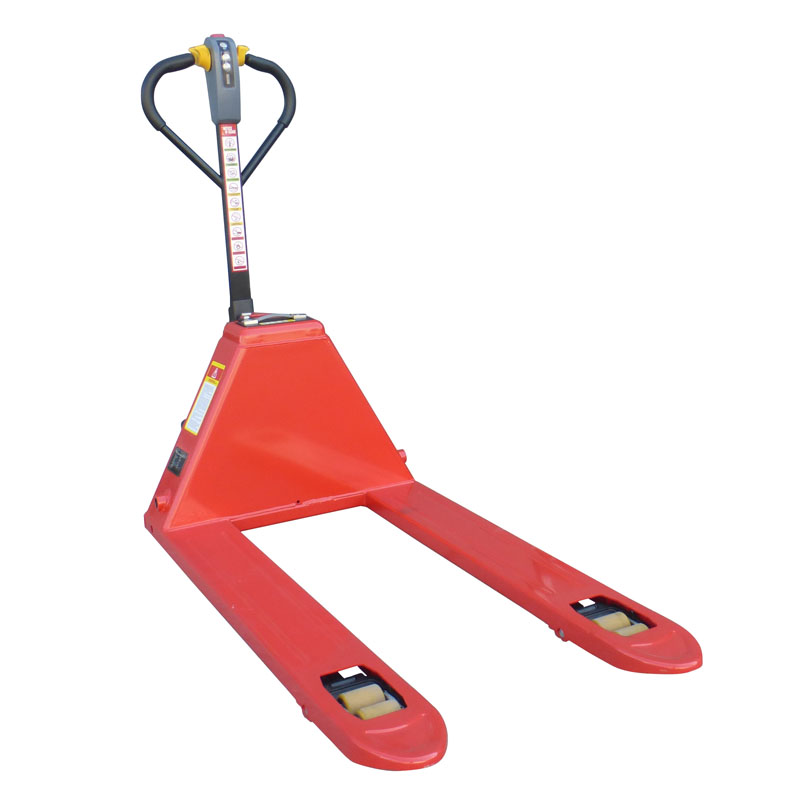

Low Profile Fully Electric Pallet Trucks Features: Low profile forks: 65mm lowered fork height Electric drive, electric lift Easy to operate, strong yet very compact electric pallet truck Ergonomically designed handle with LED battery indicator Reversing button and accelerator controls on handle Forks designed for easy pallet entry Portable and easily removable lithium battery Quick charging – our fully powered pallet truck can be charged between 2 and 5 hours This fully powered pump truck requires minimum maintenance Optional handle rain cover available – see image above 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model LEPT15S 550×1150-65L 680×1220-65L Capacity kg 1500 1500 Load Centre mm 600 600 Overall Fork Width mm 550 680 Fork Length mm 1150 1220 Overall Length mm 1566 1636 Lowered Fork Height mm 65 65 Max. Height of Forks mm 165 165 Overall Height (with Tiller) mm 1220 1220 Rear Body Width mm 416 416 Minimum Turning Radius mm 1353 1426 Maximum Travel Speed (Laden) km/h 4.0 4.0 Maximum Travel Speed (Unladen) km/h 4.5 4.5 Gradeability (Laden) % 6 6 Gradeability (Unladen) % 20 20 Drive Motor kw DC 0.75 Brushless DC 0.75 Brushless Lift Motor kw DC 0.8 DC 0.8 Battery Voltage V 48 48 Battery Capacity Ah 15 15 Battery Type – Lithium Lithium Travel Brake – Regenerate Regenerate Brake – Electromagnetic Electromagnetic
