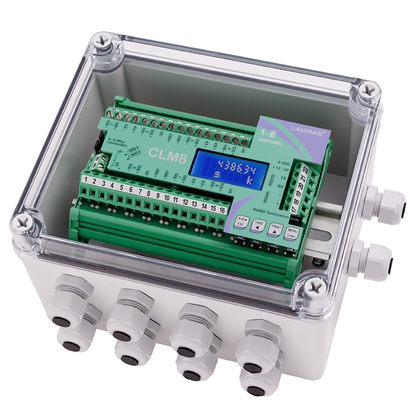

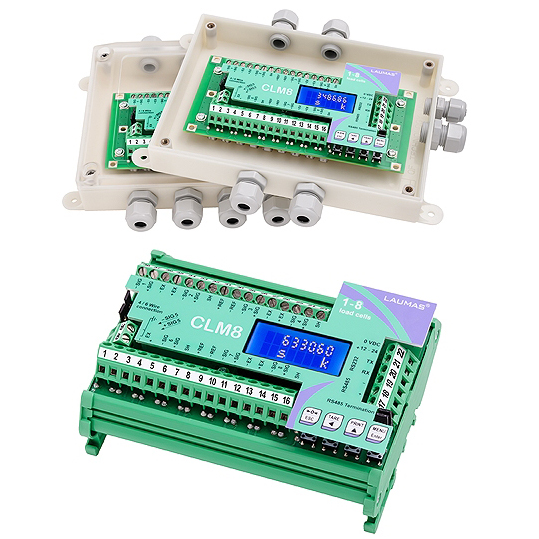

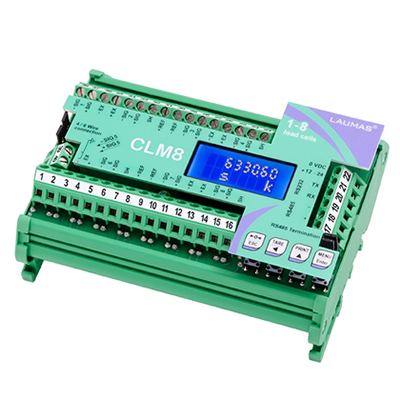

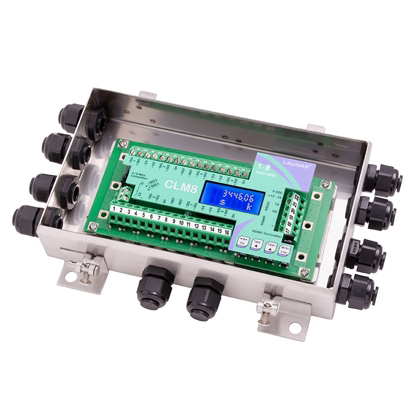

The CLM8 series offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics. Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web) RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) OIML R76:2006 approved, class III, 3×5000 divis. 0.4μV/VSI Available versions: IP67 stainless steel box: 200x148x45 mm; 8 2 cable glands – plugs. IP67 ABS box: 210x130x40 mm; 4/8 2 cable glands – plugs, 4/8 2 PVC end fittings. IP67 polycarbonate box: 170x140x95 mm; 4/8 2 PG9 cable glands – plugs, 4/8 2 PVC end fittings. Omega/DIN rail mounting version: 125x92x52 mm. Board only: 151x72x30 mm. 8 channels A/D converter – 24bit (16000000 points) 4.8 kHz Display range 999999
