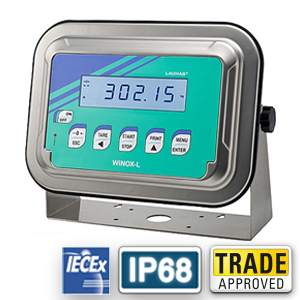

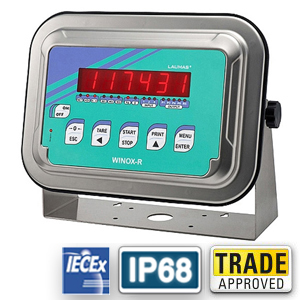

WINOX-L/R stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IPX9K optional). Six-key membrane keyboard. 46 indicator symbols (WINOX-L) / 16 indicator led (WINOX-R). Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors. Features: Possible installations: wall, panel, column, desk Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas Six-digit backlit LCD display, 20 mm height (WINOX-L) / Six-digit red LED display, 20 mm height (WINOX-R) RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) 3 logic inputs, 5 relay outputs OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.) Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc. A/D converter 24bit (16000000 points) 4.8 kHz Display range 999999 Some optional features: IP69K protection rating Data storage on USB pen drive ATEX II 3GD version 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V European Community registered design.
