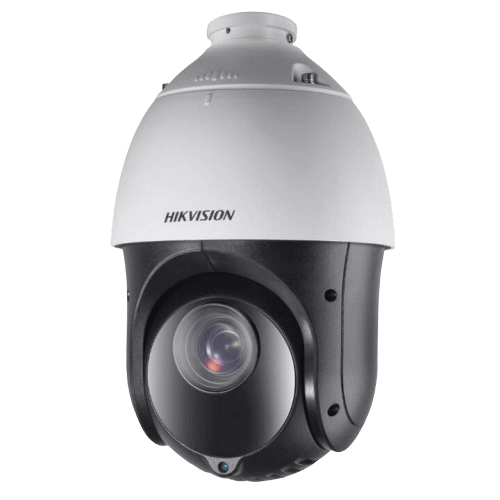

Hikvision 2MP 25X PTZ

Description Hikvision 2MP 25X PTZ Resolution 2MP ( 1920 × 1080) Lens 4.8 mm to 120 mm 25× optical zoom 16× digital zoom Video Compression Main Stream: H.265 /H.265/H.264 /H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG IR Range Up to 100m IR Range Frame Rate 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 50fps (1280 × 960, 1280 × 720) Smart Features 120dB WDR, 3D DNR, BLC, HLC, ROI, Day & Night with ICR, Defog PTZ Pan Range: 360°endless, Tilt Range: -15°-90° (Auto Flip ), Park Action Up to 300 Preset, Up to 8 patrols Scan, Up to 4 pattern scans 3D Positioning Support, PTZ Position, Scheduled Task Smart Events Motion Detection, Video Tampering Detection, Exception Intrusion Detection, Line Crossing Detection, Region Entrance Detection Region Exiting, Object Removal Detection, Unattended Baggage Detection Interface Built-in SD Card Slot, Audio I/O Protection Level IP66 Standard, TVS 4000V Lightning Protection Surge Protection Camera Module Image Sensor 1/2.8″ progressive scan CMOS Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR White Balance Auto / Manual / ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp Gain Auto / Manual Shutter Time 50Hz: 1 / 1 s to 1 / 30,000 s 60Hz: 1 / 1 s to 1 / 30,000 s Day & Night IR Cut Filter Digital Zoom 16× Privacy Mask 24 programmable privacy masks Focus Mode Auto / Semi-automatic / Manual WDR 120 dB WDR Lens Focal Length 4.8 mm to 120 mm, 25× optical zoom Zoom Speed Approx. 3.6 s (optical lens, wide-tele) Field of View Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele) Working Distance 10 mm to 1500 mm (wide-tele) Aperture Range F1.6 to F3.5 IR IR Distance 100 m Smart IR Support PTZ Movement Range (Pan) 360° endless Pan Speed Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s Movement Range (Tilt) From -15° to 90° (auto-flip) Tilt Speed Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s Proportional Zoom Support Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over 10 minutes for each scan Power-off Memory Support Park Action Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan 3D Positioning Support PTZ Position Display Support Preset Freezing Support Scheduled Task Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output Compression Standard Video Compression Main Stream: H.265 / H.265 / H.264 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third Stream: H.265 / H.264 / MJPEG H.264 Type Baseline Profile / Main Profile / High Profile H.264 Support H.265 Type Baseline Profile / Main Profile / High Profile H.265 Support Video Bitrate 32 Kbps to 16384 Kbps Audio Compression G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM Audio Bitrate G.711alaw / G.711ulaw: 64 Kbps G.722.1 / G.726: 16 Kbps MP212 / PCM: 32 Kbps / 64 Kbps / 128 Kbps SVC Support Smart Features Basic Event Motion Detection, Video Tampering Detection, Exception Smart Event Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection Smart Record ANR (Automatic Network Replenishment), Dual-VCA ROI Main stream, sub-stream, and third stream respectively support four fixed areas. Image Max. Resolution 1920 × 1080 Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720) Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Image Enhancement HLC / BLC / 3D DNR / Defog / EIS / Regional Exposure / Regional Focus Network Network Storage Built-in memory card slot, support Micro SD / SDHC / SDXC, up to 256 GB; NAS (NPS, SMB /  CIPS), ANR Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Interface Audio Interface 1-ch audio input and 1-ch audio output Network Interface 1 RJ45 10 M/100 M Ethernet, PoE (802.3 at, class4) General Power 12 VDC and PoE (802.3 at, class4) Max.: 18 W (Max. 7W for IR) Working Temperature -30°C to 65°C (-22°F to 149°F) Working Humidity ≤ 90% Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection Material ADC 12, PC, PC 10% GF Dimensions Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) Weight Approx. 2 kg (4.41 lb)
