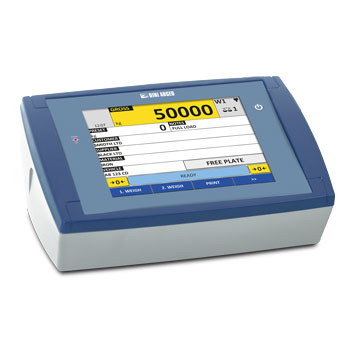

Features: Backlit graphic display with 8″ touch screen technology, lxh= 160×120 mm size. Screens completely customizables. Multilanguage software. QWERTY, AZERTY o QWERTZ keyboard, selectable. ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer). Dimensions: 278x125x186 mm. Suitable for use on the table, column, or wall. Real time clock and permanent data storage. Fitted alibi memory, integrated on the motherboard. Slot for built-in micro SD for recording logos (upon request). Functions available with DINITOOLS utility – Configuration, data entry and print formatting. – Recording and filing of all the information on PC. – Complete retrieval of the configuration. – Instrument calibration with numeric values. – Customization of the screens. 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points. 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight. Specific version available, which provides the management of the most common digital load cells for weigh bridges (model 3590ETD8). Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03). Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade. Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points. Connectable to printers and labellers with free programmation of the printout formats. 110-240 Vac power supply. Main Certifications EU Type Examination Certificate (45501:2015) OIML R76 OIML R51 – MID OIML R134 (AF09)
