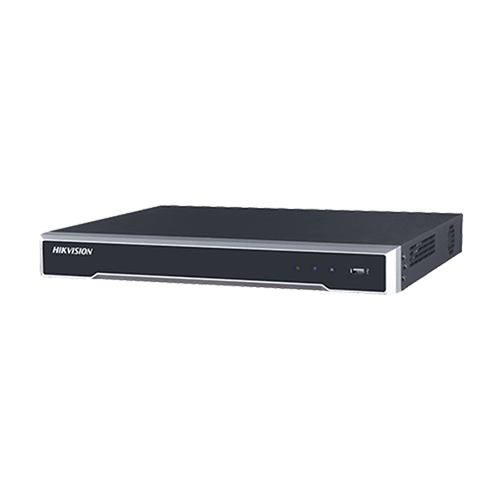

Hikvision 7616NI-Q2 16CH NVR

Description Hikvision 7616NI-Q2 16CH NVR IP Video Input Up to 16 IP cameras can be connected Decoding Format Supports H.265 /H.265/H.264 /H.264 Video formats Interface 2 SATA interface connectable for recording and backup Bandwidth Incoming bandwidth: 160 Mbps Outgoing bandwidth: 80 Mbps Video Output VGA/HDMI Output Decoding Capacity 1-ch @ 8 MP / 4-ch @ 1080p Resolution Live view, storage, and playback of the connected camera at up to 8 MP resolution Smart Function Centralized management of IP cameras VCA detection alarm Video/Audio input IP video input 16-ch Up to 8 MP resolution Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω) Network Incoming bandwidth 160 Mbps Outgoing bandwidth 80 Mbps Video / Audio output Recording resolution 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI output resolution 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output resolution 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio output 1-ch, RCA (Linear, 1 KΩ) Decoding Decoding format H.265 / H.265 / H.264 / H.264 / MPEG4 Live view  /  Playback resolution 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF Synchronous playback 16-ch Capability 1-ch @ 8 MP / 4-ch @ 1080p Network management Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Hard disk SATA 2 SATA interface Capacity Up to 6TB capacity for each disk External interface Network interface 1, RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface USB interface 2 × USB 2.0 General Power supply 12 VDC Power ≤ 40W Consumption (without hard disk) ≤ 15 W Working temperature -10 to 55º C ( 14 to 131º F) Working humidity 10 to 90 % Dimensions (W × D × H) 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) Weight(without hard disk) ≤ 1.8 kg (2.2 lb)
