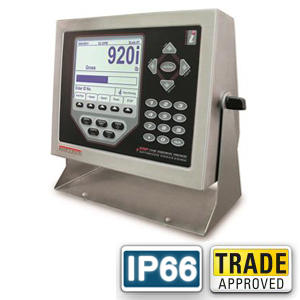

920i® Programmable Weight Indicator and Controller

Standard Features LCD display, (W x H) 4.6 in x 3.4 in Selectable character sizes from 0.25 in to 1.2 in 60 configurable operator prompts Display up to four scale channels per screen with required Legal for Trade information 32 scale accumulators Five softkeys with 10 user-defined, 14 preset functions per screen Ten programmable display screens Millivolt calibration, five-point linearization and geographical calibration NEMA Type 4X/IP66 stainless steel enclosure Selectable A/D measurement rate up to 960/second 100 setpoints, 30 configurable setpoint types Two slots for option cards 1,000-ID truck register for in/out weighing 64K user on-board NV RAM User programmable 128K flash memory Reflash memory to upgrade firmware Power for 16 350-ohm load cells per A/D board Local-remote indicators Multi range/interval Alibi™ storage Audit trail tracking Peak hold Rate of change USB Standard Features USB interface card on Port 2 The USB card is supported on Rev L CPU boards or later The 920i for USB interface requires firmware version 5.0 or higher Connector Types: Standard Type A: 920i connects to keyboard, ASCII font printers and flash drives Standard Type B: 920i connects to PC USB Interface Functions: Supports weigh mode and configuration mode functions Supports upload of databases and .920 configuration file Supports download of databases, .920 configuration file, iRite, COD file and firmware file Sanity checks for command errors Flash Drives: Supports USB 2.0 Create subdirectories by unit ID and database name Use the root directory for generic files Optional Washdown Connectors: Sealed receptacle Connectors – cables USB cover – flash drive and receptacle
