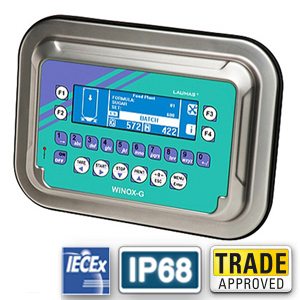

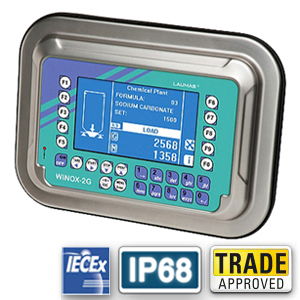

Multilanguage software Possible installations: wall, panel, column, desk Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas Backlit LCD graphic display, 128×75 mm, 240×128 pixel(2G), 133×39 mm, 240×64 pixel(G) RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) 3 logic inputs, 5 relay outputs OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.) Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc. A/D converter 24bit (16000000 points) 4.8 kHz Display range 999999 Some optional features: IP69K protection rating Data storage on USB pen drive Barcode reader and PC keyboard management via USB ATEX II 3GD version 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V European Community registered design.
