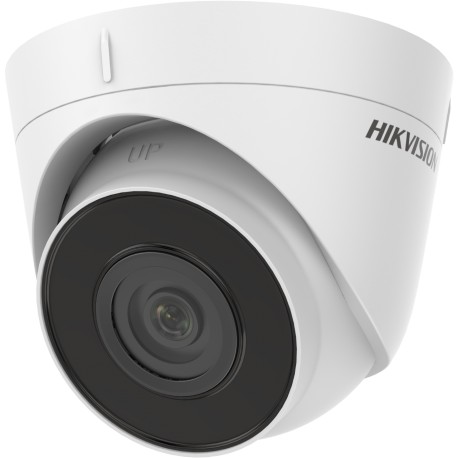

Hikvision DS-2CD1343G0-I IP Camera

Description Hikvision DS-2CD1343G0-I IP Camera   4 MP Fixed Turret Network Camera Popular High quality imaging with 4 MP resolution Efficient H.265 compression technology Clear imaging even with strong back lighting due to 120 dB WDR Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Built-in microphone for real-time audio security Support up to 256 GB SD card storage   Specification Camera Image Sensor1/3″ progressive scan CMOS Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120 dB Day & NightIR cut filter Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Focal Length & FOV 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° Lens MountM12 FocusFixed ApertureF2.0 Illuminator IR Wavelength850 nm IR RangeUp to 30 m Video Max. Resolution2560 × 1440 Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile H.264 Main stream supports H.265 Main stream supports Region Of Interest (ROI)1 fixed region for main stream Audio Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface, ISAPI User/HostUp to 32 users. 3 levels: administrator, operator and user Network Storage-UF: NAS (NFS, SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10 Plug-in free live view: Chrome 57.0 , Firefox 52.0 Local service: Chrome 57.0 , Firefox 52.0 Image Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night SwitchAuto, Schedule, Day, Night Image EnhancementBLC, 3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB Built-In Microphone-UF: Yes Hardware Reset-UF: Yes Event Basic EventMotion detection, video tampering, exception General Linkage Method Upload to FTP, notify surveillance center, send email -UF also supports: upload to memory card, trigger recording, trigger capture Camera MaterialMetal & Plastic Camera DimensionØ110 mm × 85.3 mm (Ø 4.3″ × 3.4″) Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) Camera WeightApprox. 320 g (0.7 lb.) With Package WeightApprox. 556 g (1.2 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Web Client LanguageEnglish, Ukrainian General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Firmware VersionV5.5.120 Power Consumption And Current 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W Power Supply 12 VDC ± 25% PoE: 802.3af, Class 3 Power InterfaceØ5.5 mm coaxial power plug Approval EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 Am 1:2009 Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010 A1:2013 A2:2015) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIP67 (IEC 60529-2013)
