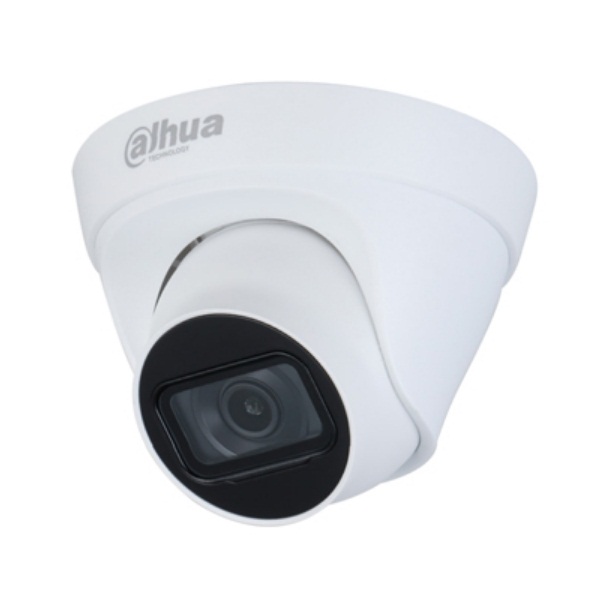

Description DAHUA DH-IPC-HDW1230T1-S4 IP Camera 2MP Entry IR Fixed-Focal Eyeball Network Camera System Overview With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition Outputs max. 2MP (1920 × 1080) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access 12V DC/PoE power support IP67 protection Smart (H.265 & H.264 ) With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Motion Detection When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records. Smart IR Dahua Smart IR technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target. Image Flip For narrow and long scenes, Dahua image flip technology flips the image by 90°/270° to realize better surveillance in rotation mode. Protection (IP67,wide voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage. Colour White Type of cameras Eyeball / Turret Camera Max.Resolution 2MP Camera Focal length 2.8mm Camera IR Distance 30m Power Supply Poe, 12Vdc Protection Level IP67 Working Environment -40°C~ 60°C
