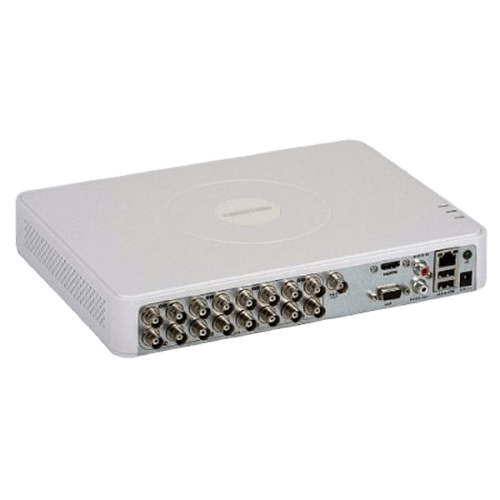

Hikvision 7116HQHI-K1 16CH 4 MP DVR

Description Hikvision 7116HQHI-K1 16CH 4 MP DVR Analog Video Input 16-ch BNC interface DVR Video Compression H.265 Pro / H.265 Pro / H.265 / H.264 / H.264 Encoding Resolution Encoding ability up to 1080p@15 fps Video Input HDTVI/AHD/CVI/CVBS/IP video input Video Output VGA/HDMI Output Transmission Distance Max. 800 m for 1080p and 1200 m for 720p HD-TVI signal Recording Video compression H.265 Pro / H.265 Pro / H.265 / H.264 / H.264 Encoding resolution When 1080p Lite mode is not enabled: 4 MP lite / 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF; When 1080p Lite mode is enabled: 4 MP lite / 3 MP / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF Frame rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25fps (P) / 30fps (N) For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15fps For 1080p stream access: 1080p/720p@15fps; For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25fps (P) / 30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N) Sub-stream: WD1 / 4CIF @ 12fps; CIF @ 25fps (P) / 30fps (N) Video bit rate 32 Kbps to 6 Mbps Dual stream Support Stream type Video, Video & Audio Audio compression G.711u Audio bit rate 64 Kbps Video and Audio IP video input 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265 / H.265 / H.264 / H.264 IP cameras Analog video input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1 AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30 CVBS input Support VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio output 1-ch, RCA (Linear, 1 KΩ) Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous playback 16-ch Network Remote connection 128 Network protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface Auxiliary interface SATA 1 SATA interface Capacity Up to 6 TB capacity for each disk USB interface Real panel: 2 × USB 2.0 Alarm in/out N/A General Power supply 12 VDC Consumption (without HDD) ≤ 15 W Working temperature -10 °C to 55 °C ( 14 °F to 131 °F) Working humidity 10% to 90% Dimension (W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) Weight (without HDD) ≤ 1 kg (2.2 lb)
