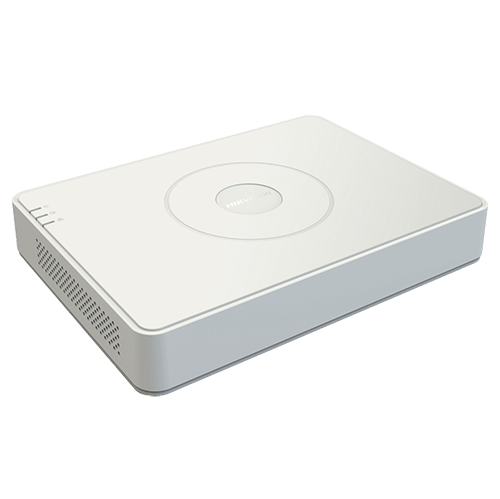

Description Hikvision 7116HGHI-K1 16CH 2 MP DVR Analog Video Input 16 Channel BNC interface DVR Video Compression H.265 Pro / H.265 Pro video compression Encoding Resolution Encoding ability up to 1080p lite @ 15 fps Video Input 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) Video Output VGA/HDMI Output IP Cameras Up to 18 network cameras can be connected on Enhanced IP Mode Recording Video compression H.265 Pro / H.265 Pro / H.265 / H.264 / H.264 Encoding resolution 1080p lite/720p Frame rate Main stream: For 1080p stream access: 1080p lite / 720p lite@15 fps; For 720p stream access: 720p/WD1@15 fps; Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For standard definition stream access: CIF/QVGA@25 fps (P)/30 fps (N) Video bit rate 32 Kbps to 4 Mbps Dual stream Support Stream type Video, Video & Audio Audio compression G.711u Audio bit rate 64 Kbps Video and Audio IP video input 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265 / H.265 / H.264 / H.264 IP cameras Analog video input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI input 1080p25, 1080p30, 720p25, 720p30 AHD input 1080p25, 1080p30, 720p25, 720p30 HDCVI input 1080p25, 1080p30, 720p25, 720p30 CVBS input PAL/NTSC HDMI/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output Audio input 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable Audio output 1-ch, RCA (Linear, 1 KΩ) Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Synchronous playback 16-ch Network Remote connections 128 Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface Auxiliary interface SATA 1, SATA interface Capacity Up to 10 TB capacity for each disk USB interface Rear panel: 2 × USB 2.0 General Power supply 12 VDC, 1.6 A Consumption (without HDD) ≤ 7 W Working temperature -10 °C to 55 °C (14 °F to 131 °F) Working humidity 10% to 90% Dimension (W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) Weight (without HDD) ≤ 1.8 kg (4.0 lb)
