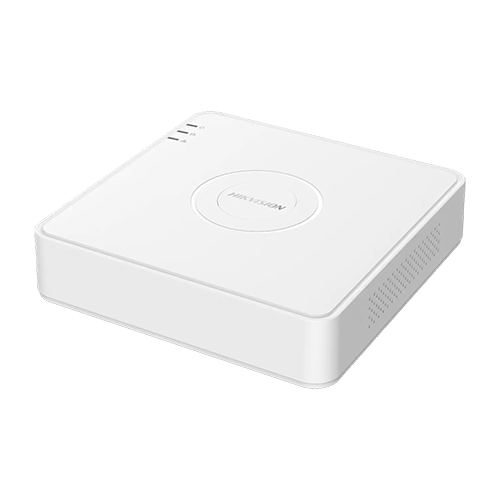

Hikvision 7104HQHI-M1/S 4CH 4 MP

Description Hikvision 7104HQHI-M1/S 4CH 4 MP Acusense DVR Hikvision iDS-7104HQHI-M1/S 4-Ch 1080P Mini 1U H.265 AcuSense DVR Video Compression H.265 Pro / H.265 Pro / H.265 / H.264 / H.264 Encoding Resolution Encoding ability up to 1080p@15 fps Video Input HDTVI/AHD/CVI/CVBS/IP video input Video Output VGA/HDMI Output Motion Detection Deep learning based human and vehicle targets classification of Motion Detection Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection Human/Vehicle Analysis Up to 2-ch Facial Detection Facial Detection and Capture Face picture detection, face picture search Recording Video Compression H.265 Pro / H.265 Pro / H.265 / H.264 / H.264 Encoding Resolution When 1080p Lite mode is not enabled: 3K lite / 5MP lite/ 4MP lite / 1080p / 720p When 1080p Lite mode is enabled: 3K lite/ 5MP lite / 4MP lite / 1080p lite / 720p lite Frame Rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite @ 12fps; 4 MP lite / 1080p @ 15fps; 720p @ 20fps For 5 MP stream access: 5 MP lite@12fps; 4 MP lite / 1080p @ 15fps; 720p @ 20fps For 4 MP stream access: 4 MP lite / 1080p @ 15fps; 720p @ 25fps (P) / 30fps (N) For 1080p stream access: 1080p / 720p @ 15fps; VGA @ 25fps (P) / 30fps (N) For 720p stream access: 720p @ 25fps (P) / 30fps (N) When 1080p Lite mode enabled: 3K lite / 5MP lite@12fps; 4 MP lite @ 15fps; 1080p lite/720p lite @ 25fps (P)/30fps (N) Sub-stream: WD1/4CIF @ 12fps; CIF @ 25fps (P)/30fps (N) Video Bitrate 32 Kbps to 6 Mbps Dual-stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps Video and Audio IP Video Input 1ch (up to 5-ch) Enhanced IP mode on: 1ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input 3K @ 20 fps, 5MP @ 20 fps, 4MP @ 30 fps, 4MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps AHD Input 5 MP @ 20 fps,4MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30fps, 720p @ 25 fps HDCVI Input 5 MP @ 20 fps, 4MP @ 30 fps, 4MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30fps, 720p @ 25 fps CVBS Input Support HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode HDMI/VGA simultaneous output Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback 4-ch Network Total Bandwidth 72 Mbps Remote Connection 32 Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface Auxiliary Interface SATA 1 SATA interface Capacity Up to 10 TB capacity for each disk Alarm In/Out N/A USB Interface Real panel: 2 × USB 2.0 General Power Supply 12 VDC, 1.5 A Consumption ≤ 8 W (without HDD) Working Temperature -10 °C to 55 °C  ( 14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) Weight ≤ 1 kg (without HDD, 2.2 lb.)
