$16.24
$31.83

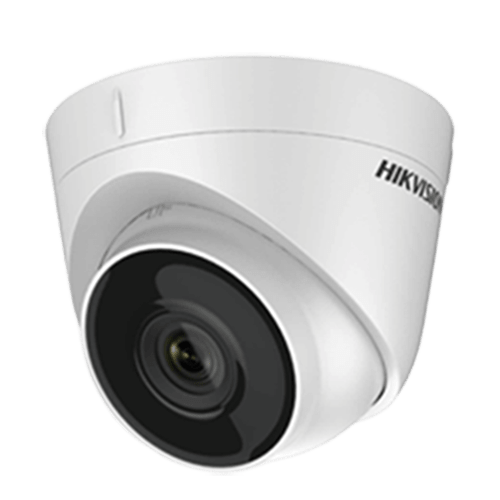

Hikvision 1343 4 MP DOME IP Resolution 4MP (2560 × 1440) IR Range Up to 30m IR Range Frame Rate 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Smart Features DWDR, 3D DNR, BLC, ROI Alarms Trigger Motion detection, video tampering alarm, illegal login General Function Motion Detection, Privacy Mask Protection Level IP67 Weatherproof Camera Image Sensor 1/3″ progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter Slow Shutter Yes Auto-Iris No Day &Night IR cut filter Digital Noise Reduction 3D DNR WDR Digital WDR Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° Lens Focal length 2.8 mm Aperture F2.0 Focus No FOV horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° Lens Mount M12 IR IR Range Up to 30 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265 / H.264 Sub stream: H.265 / H.264 / MJPEG H.264 Type Baseline Profile / Main Profile / High Profile H.264 Main stream supports H.265 Type Main Profile H.265 Main stream supports Video Bit Rate 32 Kbps to 8 Mbps Smart Feature-set Region of Interest 1 fixed region for main stream and sub-stream Image Max. Resolution 2560 × 1440 Main Stream Max. Frame Rate 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-stream Max. Frame Rate 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) Image Enhancement BLC, 3D DNR Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, scheduled Network Network Storage NAS (NFS, SMB/CIFS) Alarm Trigger Motion detection, video tampering alarm, illegal login Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter API ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator and User Client iVMS-4200, Hik-Connect, iVMS-5200 Interface Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port General Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W Ingress Protection IP67 TVS 2000V lightning protection, surge protection and voltage transient protection Material Metal & Plastic Dimensions Camera: Ø 110 mm × 93.2 mm ( 4.3″ × 3.7″)
Hikvision Camera
