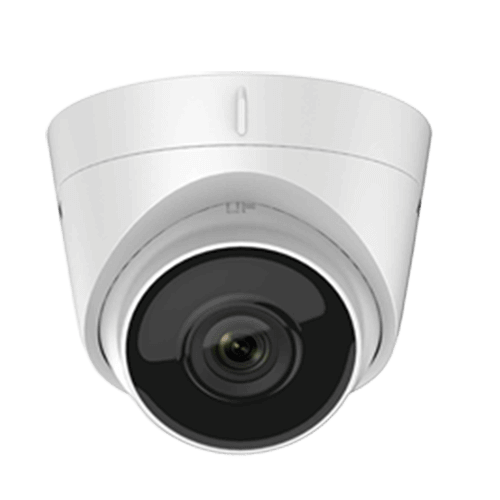

Hikvision 1323 2 MP DOME IP

Description Hikvision 1323 2 MP DOME IP Resolution 2MP (1920x1080p) Full HD IR Range Up to 30 m IR range Frame Rate 25fps (1920 × 1080, 1280 × 960, 1280 × 720) Compression Standard Main stream: H.265 / H.265 / H.264 / H.264 Sub stream: H.265 / H.264 / MJPEG Alarms Trigger Motion detection, video tampering alarm, illegal login Smart Features DWDR, 3D DNR, Day & Night with ICR, ROI, BLC General Function Motion Detection, Privacy Mask Protection Level IP67 Weatherproof Camera Image Sensor 1/2.8″ progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) Shutter Speed 1/3 s to 1/100, 000 s Slow Shutter Yes Auto-Iris No Day &Night IR cut filter Digital Noise Reduction 3D DNR WDR DWDR Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° Lens Focal Length 2.8 mm Aperture F2.0 Focus Fixed FOV horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° Lens Mount M12 IR IR Range Up to 30 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265 / H.265 / H.264 / H.264 Sub stream: H.265 / H.264 / MJPEG H.264 Type Main Profile / High Profile / Baseline Profile H.265 Type Main Profile Video Bit Rate 32 Kbps to 8 Mbps Smart Feature-set Region of Interest 1 fixed region for main stream Image Max. Resolution 1920 × 1080 Main Stream Max. Frame Rate 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Image Enhancement BLC, 3D DNR Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, scheduled, day, night Network Alarm Trigger Motion detection, video tampering alarm, illegal login Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS,  UDP General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark Firmware Version V5.5.70 API ONVIF (PROFILE S), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator and User General Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.3 A, max: 3.5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W Ingress Protection IP67 Material Camera body: metal, bottom base : plastic Dimensions Camera: Ø 110 mm × 93.2 mm (4.3″ × 3.7″)
