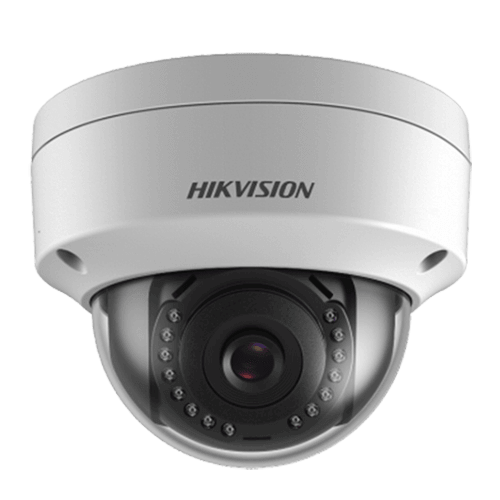

Hikvision 1143 4 MP DOME IP

Description Hikvision 1143 4 MP DOME IP Resolution 4MP (2560 × 1440) IR Range Up to 30m IR Range Frame Rate 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Smart Features 120dB WDR, 3D DNR, BLC, ROI Alarms Trigger Motion detection, video tampering alarm, illegal login General Function Motion Detection, Privacy Mask Protection Level IP67 Weatherproof, IK10 Vandal Proof Camera Image Sensor 1/2.8″  progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux  @ (F2.0, AGC ON) Shutter Speed 1/3 s to 1/100,  000 s Slow Shutter Yes Auto-Iris No Day &Night IR cut filter Digital Noise Reduction 3D DNR WDR 120dB WDR Angle Adjustment Pan: 0° to 355°,  tilt: 0°  to 70°, rotate: 0° to 355° Lens Focal length 2.8 mm Aperture F2.0 Focus Fixed FOV 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° Lens Mount M12 IR IR Range Up to 30 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265 / H.264 Sub stream: H.265 / H.264 / MJPEG H.264 Type Main Profile / High Profile / Baseline Profile H.265 Type Main Profile Video Bit Rate 32 Kbps to 8 Mbps Smart Feature-set Region of Interest 1 fixed region for main stream Behavior Analysis Line crossing detection, intrusion detection Image Max. Resolution 2560 × 1440 Main Stream Max. Frame Rate 50Hz:  20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz:  20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub-stream Max. Frame Rate 50Hz:  25fps (640 × 480, 640 × 360,  320 × 240) 60Hz:  30fps (640 × 480,  640 × 360,  320 × 240) Image Enhancement BLC, 3D DNR Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, scheduled, day, night Network Alarm Trigger Motion detection, video tampering alarm, illegal login Protocols TCP/IP, ICMP, HTTP,  HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP,  QoS, UDP General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark API ONVIF (PROFILE S), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator, and User Client iVMS-4200,  Hik-Connect, iVMS-5200, iVMS-4500 Interface Communication Interface 1 RJ45 10M/100M  self-adaptive Ethernet port General Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af,  class 3) Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af,  36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W Ingress Protection IP67, IK10 Material Front cover: plastic, back cover & bracket: metal Dimensions Camera: Ø 111 mm × 82.4 mm (4.4″ × 3.2″) With package: 134  mm × 134  mm × 108 mm (5.3″ × 5.3″ × 4.3″)
