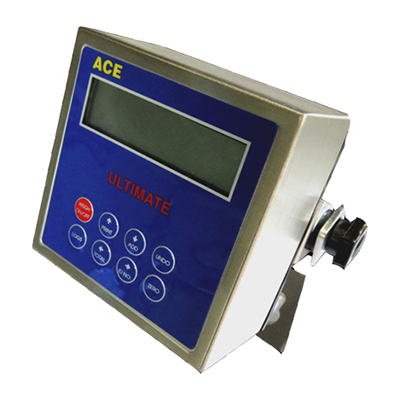

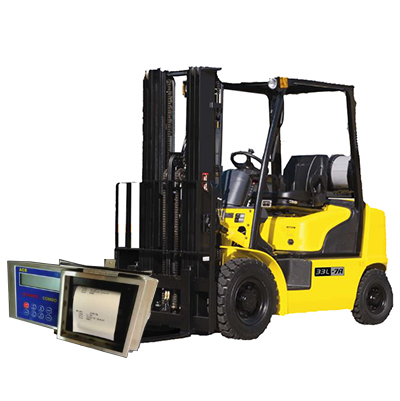

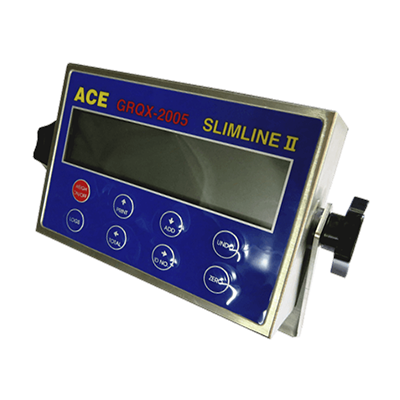

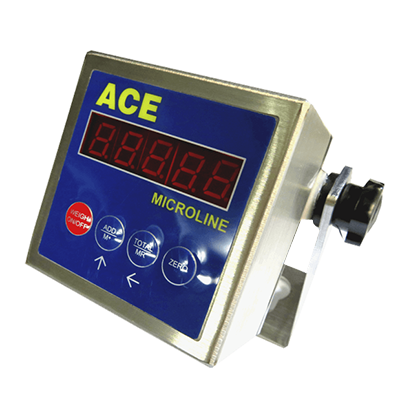

Features: 12 volt operation as standard, with 36 to 80V adapter available on request Overload alarms (audible & visual) Dual load center switching Replaces old mechanical systems by simply fitting into existing hydraulic line 5kg increments up to 2,500kg 10kg increments for over 2,500kg Add-up & Total function for all loads applied to the trucks – No more overloading! RS232 serial port (Optional) Ace Forklift Scales Microline Ace Forklift Scales Ultimate Ace Forklift Scales Ultimate Combo Ace Forklift Scales SLIMLINE II WiFork – Wifi Forklift Scales Model Ultimate/Microline Slimline Combo Transducer psi 10,000 psi Transducer material 304 stainless steel Safe overload capacity 150% of rated capacity Indicator protection IP65 (except for printer) Indicator material 304 stainless steel Weighing Units Kilograms and Pounds Function Static and Forced weighing Zeroing range 100% of capacity Span calibration 20% to 100% capacity Power 12 – 24 volts dc as standard Interface (opt) Rs-232 Operating temp. range -10 C to 50 C /14 F to 122 F Capacity & Division Max. Capacity – 100,000 Kg/ Division 5, 10, 20, 50 Kg Net Weight 1.2 Kg 1.6 Kg 2.6 Kg Shipping Weight 1.4 Kg 2 Kg 3 Kg Shipping Dimensions cm 21 x 13 x 14 26 x 26 x 17 30 x 26 x 17 Accuracy /- 1 % for all scales. Weight Display mm 14 mm lcd/Led 25 mm lcd 25mm lcd
