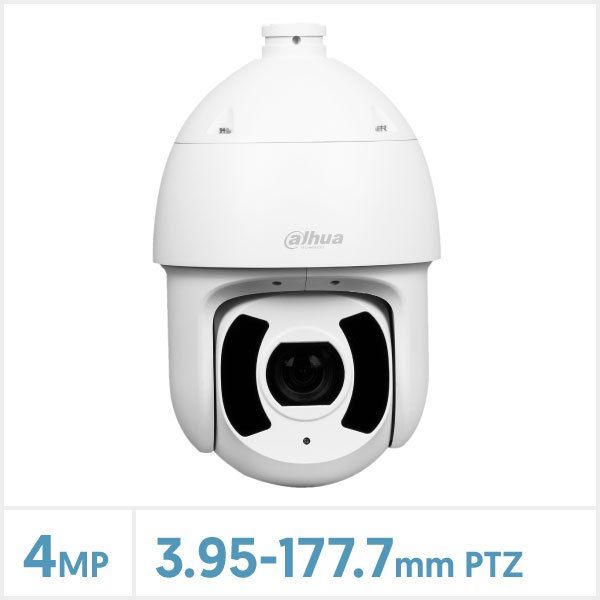

Description DAHUA PTZ DH-SD6CE445XA-HNR 4MP 45X 4MP 45x Starlight IR PTZ AI Network Camera PRODUCT INFORMATION Camera Image Sensor 1/2.8” STARVIS™ CMOS Pixels 4 MP Max. Resolution 2560(H) x 1440(V) Scanning System Progressive Electronic Shutter Speed 1/1s~1/30,000s Minimum Illumination Color:
[email protected]; B/W:
[email protected];
[email protected] (IR on) Illumination Distance Distance up to 250m (820ft) Illumination On/Off Control Auto/Manual Illuminator Number 6 Lens Focal Length 3.95mm~177.75mm Max. Aperture F1.6~ F4.95 Angle of View H: 70.3° ~ 1.8°; V: 37° ~ 1°; D: 69.3° ~ 2° Optical Zoom 45x Focus Control Auto/Manual Iris Control Auto/Manual Close Focus Distance 10mm~ 3000mm DORI Distance Detect Observe Recognize Identify 3176m(10420ft) 1271m(4170ft) 635m(2083f) 318m(1043f) PTZ Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° Manual Control Speed Pan: 0.1° ~260° /s; Tilt: 0.1° ~120° /s Preset Speed Pan: 300° /s; Tilt: 200° /s Presets 300 Tour 8 (up to 32 presets per tour) Pattern 5 Pan 5 Power up Action Auto restore to previous PTZ and lens status after power failure Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol DH-SD, Pelco-P/D (Auto recognition) Artificial Intelligence Perimeter Protection Tripwire, Intrusion. Support alarm triggering by target types(human and vehicle) Filtering out false alarms caused by animals, rustling leaves, bright lights, etc Auto Tracking Support Video Structuralization Support human, motor vehicle and non-motor vehicle image capture SMD Plus Support Face Detection Support General Intellgence Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly General Intelligence Object Abandoned/Missing Video Compression H.265 /H.265/H.264 /H.264/MJPEG(Sub Stream) Streaming Capability 3 Streams Resolution 4M(2560×1440)/3M(2048×1536)/1080P(1920× 1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240) Frame Rate Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P(1 ~ 25/30fps), 720P(1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H.265/H.264: 3Kbps ~ 20480Kbps Day/Night Auto(ICR) / Color / B/W BLC Support WDR 120dB HLC Support White Balance Auto, ATW, Indoor, Outdoor, Manual Gain Control Auto / Manual Noise Reduction Ultra DNR (2D/3D) Motion Detection Support Region of Interest Support Image Stabilization Electronic Defog Support Digital Zoom 16x Flip 180° Privacy Masking Up to 24 areas Audio Compression G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2 Network Ethernet RJ-45 (10Base-T/100Base-TX) Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x Interoperability ONVIF Profile S&G&T, API Streaming Method Unicast / Multicast User/Host 20 users Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB Browser IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, DMSS Smart Phone IOS, Android Certifications Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 Port RS485 1 Audio I/O 1/1 Alarm I/O 7/2 Power Power Supply AC24V/3A(±25%), PoE (802.3at) Power Consumption 13W, 26W(IR On, Heater On) Environment Operating Conditions -40°C ~ 70°C (-40°F ~ 158°F) / Less than 95% RH Protection IP67, IK10 Structure Casing Metal Dimensions φ209×337.4mm Net Weight 5.9kg(13lb) Gross Weight 9.6kg(21.16lb)
