$41.65
$75.8

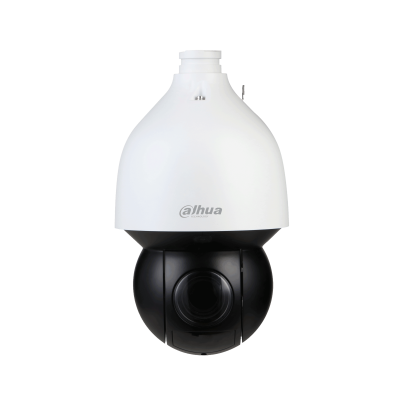

Description DAHUA PTZ DH-SD6AL232XA-HNR 2MP 32X 500M IR 2MP 32x Starlight IR WizSense Network PTZ Camera Specifications of Dahua DH-SD5A232XA-HNR Camera Image Sensor 1/2.8″ STARVIS™ CMOS Pixel 2MP Max. Resolution 1920 (H) x 1080 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1/1 s–1/30000 s Scanning System Progressive Min. Illumination Color: 0.005
[email protected] B/W: 0.0005
[email protected] 0 Lux (IR on) Illumination Distance 150 m (492.13 ft) Illuminator On/Off Control Zoom Prio/Manual/SmartIR Illuminator Number 4 Lens Focal Length 4.9 mm–156 mm Max. Aperture F1.35–F4.4 Field of View H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6° Optical Zoom 32x Focus Control Auto/Semi-Auto/Manual Close Focus Distance 1 m–1.5 m (3.28 ft–4.92 ft) Iris Control Auto/Manual/Fixed DORI Distance Detect Observe Recognize Identify 2152 m (7060.37 ft) 850 m (2788.71 ft) 430 m (1410.76 ft) 215 m (705.38 ft) PTZ Pan/Tilt Range Pan: 0°–360° endless Tilt: –15° to 90°, auto flip 180 Manual Control Speed Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s Preset Speed Pan: 400°/s Tilt: 300°/s Presets 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Support Idle Motion Preset/Tour/Pattern/Scanning Protocol DH-SD Pelco-P/D (auto recognition) Artificial Intelligence Smart Capture Support human, motor vehicle and non-motor vehicle image capture. Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. Face Detection Support Auto Tracking Support SMD PLUS Support Video Compression H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265 ; H.264 Streaming Capability 3 streams Resolution 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352×288) Frame Rate Main stream: 1080P/1.3M/720P (1–50/60 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 720P (1–25/30 fps) Bit Rate Control Variable/Constant Bit Rate H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps Day/Night Auto (ICR)/Color/B/W BLC Support WDR 120 dB HLC Support White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ Natural light/Street lamp Gain Control Auto/Manual Noise Reduction 2D/3D Motion Detection Support Region of Interest (RoI) Support Image Stabilization Electronic Defog Electronic Digital Zoom 16x Flip 180° Privacy Masking Up to 24 areas, and up to 8 areas in the same view S/N Ratio ≥ 55 dB Audio Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 Network Ethernet RJ-45 (10/100Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP Interoperability ONVIF Profile S&G&T; CGI Streaming Method Unicast/Multicast User/Host 20 (total bandwidth 64M) Storage FTP; Micro SD card (256G); NAS
