$58.22
$72.78

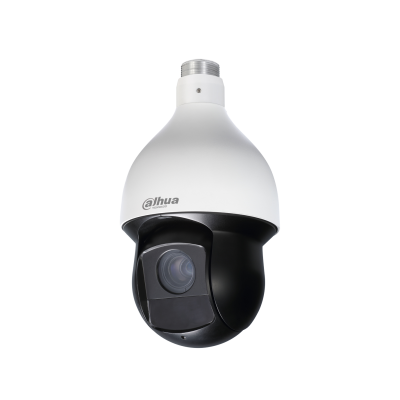

Description DAHUA PTZ DH-SD59432XA-HNR 4MP 32X 4MP 32x Starlight IR WizSense Network PTZ Camera Specifications Camera Image Sensor 1/2.8″ STARVIS™ CMOS Pixel 4MP Max. Resolution 2560 (H) x 1440 (V) ROM 4GB RAM 1GB Electronic Shutter Speed 1/3–1/30,000 s Scanning System Progressive Min. Illumination Color: 0.005
[email protected] B/W: 0.0005
[email protected] 0 Lux (IR light on) Illumination Distance 150 m (492.13 ft) Illuminator On/Off Control Zoom Prio/Manual/SmartIR Illuminator Number 4 Lens Focal Length 4.9 mm–156 mm Max. Aperture F1.35–F4.4 Field of View H: 68.3°–2.2°; V: 38.9°–1.3°; D: 68.3°–1.4° Optical Zoom 32x Focus Control Auto/Semi-Auto/Manual Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft ) Iris Control Auto/Manual DORI Distance Detect Observe Recognize Identify 3034 m (9954.06 ft) 1213 m (3979.66 ft) 606 m (1988.19 ft) 303 m (994.09 ft) PTZ Pan/Tilt Range Pan: 0°–360°; Tilt: -10°– 90° Manual Control Speed Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s Preset Speed Pan: 400°/s; Tilt: 300°/s Presets 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Speed Adjustment Support Power-off Memory Support Idle Motion Preset/Tour/Pattern/Scanning Protocol DH-SD Pelco-P/D (auto recognition) General Intelligence Event Trigger Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. IVS Object abandoned/missing Artificial Intelligence Smart Capture Support human, motor vehicle and non-motor vehicle image capture. Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. Face Detection Support SMD Plus Support Auto Tracking Support Video Compression H.265/H.265 /H.264 /H.264/MJPEG (sub stream) Streaming Capability 3 streams Resolution 4M (2560 × 1440)/3M (2048 × 1536)/1080p (1920 × 1080)/720p (1280 × 960)/D1 (704 × 576/704 × 480)/CIF (352 × 288/352 × 240) Frame Rate Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 720P (1–25/30 fps) Bit Rate Control Variable Bit Rate/Constant Bit Rate Bit Rate H.265/H.264: 3 kbps–20480 kbps Day/Night Auto (ICR)/Color/B/W BLC Support WDR 120dB HLC Support White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp Gain Control Auto/Manual Noise Reduction 2D/3D Motion Detection Support Region of Interest (RoI) Support Image Stabilization Electronic Defog Support Digital Zoom 16x Flip 0°/180° Privacy Masking Up to 24 areas Certification Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 Audio Compression G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 Port Audio I/O 1 (Line in; bare wire)/1 (Line out; bare wire) Alarm I/O 2/1 Network Ethernet RJ-45 (10/100Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP Interoperability ONVIF Profile S&G&T; CGI Streaming Method Unicast/Multicast User/Host 19 (Total bandwidth 48M) Storage FTP; Micro SD card (256G); P2P Browser IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari Management Software Smart Player Smart PSS DSS Easy4ip Mobile Phone IOS/Android Power Power Supply DC 24 V/2.5 A ± 25%; PoE (802.3at) Power Consumption 11 W 24 W (IR on) Environment Operating Temperature –40 °C to 70 °C (–40 °F to 158 °F) Operating Humidity ≤ 95%RH Protection IP66; TVS 6000 V lightning protection; surge protection Structure Dimensions Φ186 mm x 309 mm (7.32″ × 12.17″) Net Weight 3.9 kg (8.60 lb) Gross Weight 7.01 kg (15.45 lb) Casing Metal
