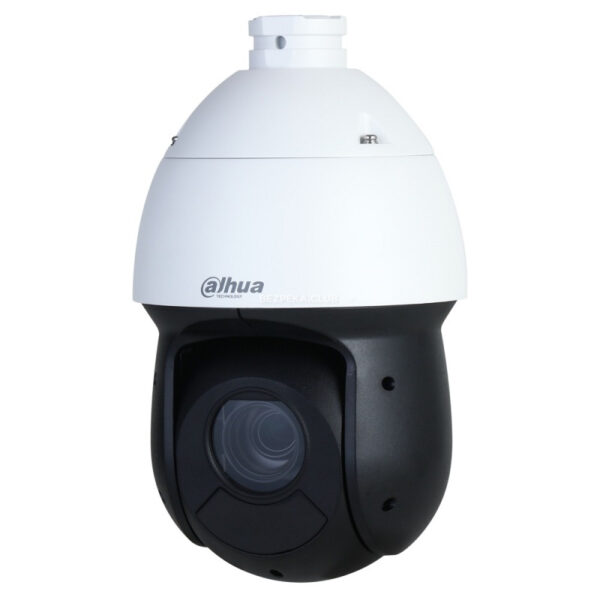

Description DAHUA PTZ DH-SD49225DB-HNY 2MP 25 Ordinary IR Network PTZ Camera Specifications Device Type IP-camera Connection type wired Installation location outside Matrix resolution 2 Mpx Wi-Fi support no Video standard IP Type of instalation wall, ceiling, overhead Form factor swivel Intended for use home, house, office, store, warehouse, production, garage Matrix type 1/2.8″ CMOS Recording speed Main stream: 1080p/960p/720p (1–25/30 fps); Sub stream: D1/VGA/CIF (1–25/30 fps); Third stream: 1080p/960p/720p (1–25/30 fps) Camera motion sensor program Lens type variofocal Focal length other Viewing angle 58.5°–2.8° Optical zoom 25x Digital zoom 16x Light sensitivity Color: 0.005 Lx at F1.6, B/W: 0.0005 Lx at F1.6, 0 Lx (IR illumination on) Light distance 100 m Type of illumination infrared Day-night mode yes, ICR filter Memory card slot yes Built-in microphone no Built-in speaker no Video output 1xRJ45 Audio inputs 1xRCA Audio outputs 1xRCA Network output 1xRJ45 Network Interface RJ-45 (10/100 Base-T) Type of memory cards microSD card up to 512GB PoE support yes PoE type 802.3at Video compression H.264, H.264 , H.265, H.265 , MJPEG Alarm Inputs-Outputs yes Alarm inputs 2 Alarm outputs 1 Modes day/night (ICR) / WDR / BLC / HLC / ROI / Defog Streaming 3 streams PTZ control yes Built-in lightning protection 6KV Camera technology Starlight Additional functions of camera motion detection, face detection, region of interest (ROI) Moisture and dust protection IP66 Vandal protection no Browsers Chrome, Firefox, Safari, Edge, Opera OS support Windows, MAC OS, IOS, Android Powered by batteries / rechargeable batteries no Integration with Ajax system yes Mobile app DMSS Special features Starlight Compatibility CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T) Consumption 12 – 20 W Operating voltage 12V DC, PoE Dimensions (WхHхD) Ø 270×160 mm Body color white Body material no data Weight 2.4 kg Temperature range -40… 60°C Producing country China Device class middle
