$47.17
$80.19

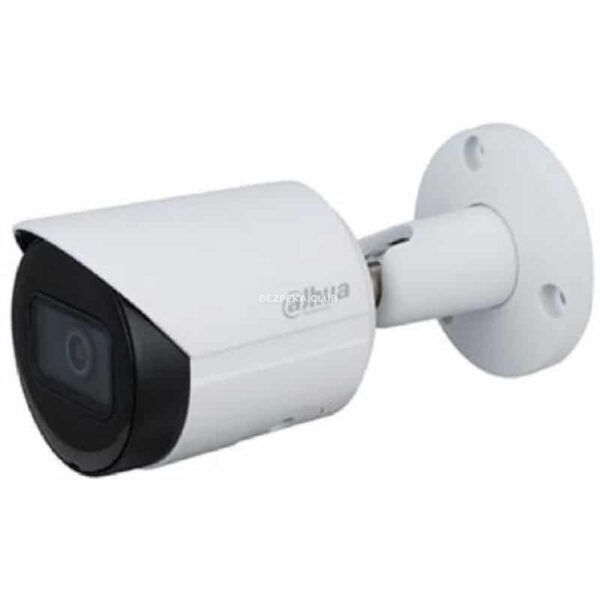

Description DAHUA IP Camera DH-2431SP-S2 4MP WDR IR Bullet Network Camera Technical Specification Camera Image Sensor 1/3” 4Megapixel progressive CMOS Effective Pixels 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.008
[email protected] IR Distance 30 m (98.43 ft) IR On/Off Control Auto/Manual IR LEDs Number 1 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F1.6 F1.6 Field of View 2.8 mm: Pan: 102.0° Tilt: 55.0° Diagonal: 121.0° 3.6 mm : Pan: 84.0° Tilt: 45.0° Diagonal: 100.0° Iris Type Fixed aperture Close Focus Distance 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 56 m (183.73 ft) 22.4 m (73.49 ft) 11.2 m (36.75 ft) 5.6 m (18.37 ft) 3.6 mm 80 m (262.47 ft) 32.0 m (104.99 ft) 16.0 m (52.49 ft) 8.0 m (26.25 ft) Smart event General IVS Analytics Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG Smart Codec Yes Video Frame Rate Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 stream www.dahuasecurity.com Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart IR Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) Mirror Yes Privacy Masking 4 areas Network Network RJ-45 (10/100 Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec User/Host 20 Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12V DC/PoE (802.3af) Power Consumption < 5W Environment Operating Conditions -40°C to 60°C (-40°F to 140°F)/less than ≤ 95% RH torage Temperature -40°C to 60°C (-40°F to 140°F) Protection Grade IP67 Structure Casing Metal Dimensions 166.2 mm × Φ70 mm (6.54″ × Φ2.76″) Net Weight 0.48 kg (1.1 lb) Gross Weight 0.57 kg (1.3 lb) Ordering Information Type Part Number Description 4MP Camera DH-IPCHFW2431SP-S-S2 4MP WDR IR Bullet Network Camera, PAL DH-IPCHFW2431SN-S-S2 4MP WDR IR Bullet Network Camera, NTSC Accessories (optional) PFA134 Junction Box PFA152-E Pole Mount PFM321D DC12V1A Power Adapter LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender PFM900-E Integrated Mount Tester PFM114 TLC SD Card
