$67.73
$99.56

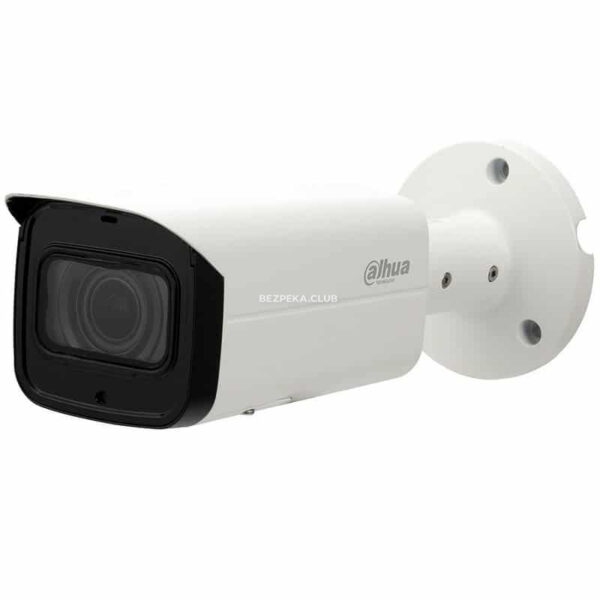

Description DAHUA IP Camera DH-2231TP-ZS Motorized 2MP Lite IR Vari-focal Bullet Network Camera Technical Specification Camera Image Sensor 1/2.8” 2Megapixel progressive CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.002
[email protected] S/N Ratio >56 dB Illumination Distance 60 m (196.85 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 4 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Motorized vari-focal Mount Type φ14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.5 Field of View Horizontal: 109°–28° Vertical: 57°–16° Diagonal: 131°–33° Iris Type Fixed Close Focus Distance 0.8 m–0.8 m (2.62 ft–2.62 ft) DORI Distance Lens Detect Observe Recognize Identify W 44.1 m (144.69 ft) 17.6 m (57.74 ft) 8.8 m (28.87 ft) 4.4 m (14.44 ft) T 151.7 m (497.70 ft) 60.6 m (198.82 ft) 30.3 m (99.41 ft) 15.1 m (49.65 ft) Smart Event IVS Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265 / Smart H.264 Video Frame Rate Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) Mirror Yes Privacy Masking 4 areas Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec User/Host 20 Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12V DC/PoE (802.3af) Power Consumption < 9.6W Environment Operating Conditions -30°C to 60°C (-22°F to 140°F)/less than ≤ 95% RH Storage Temperature -40°C to 60°C (-40°F to 140°F) Protection IP67;IK10(optional) Structure Casing Metal Dimensions 244.1 mm × Φ90.4 mm (9.61″ × Φ3.26″) Net Weight 0.86 kg (1.90 lb) Gross Weight 1.10 kg (2.43 lb) Ordering Information Type Part Number Description 2MP Camera DH-IPC-HFW2231TP-ZS-S2 2MP Lite IR Vari-focal Bullet Network Camera,PAL DH-IPC-HFW2231TN-ZS-S2 2MP Lite IR Vari-focal Bullet Network Camera,NTSC Accessories (optional) PFA130-E Junction Box PFA152-E Pole Mount PFM321D DC12V1A Power Adapter LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender PFM900-E Integrated Mount Tester PFM114 TLC SD Card
