$65.3
$101.87

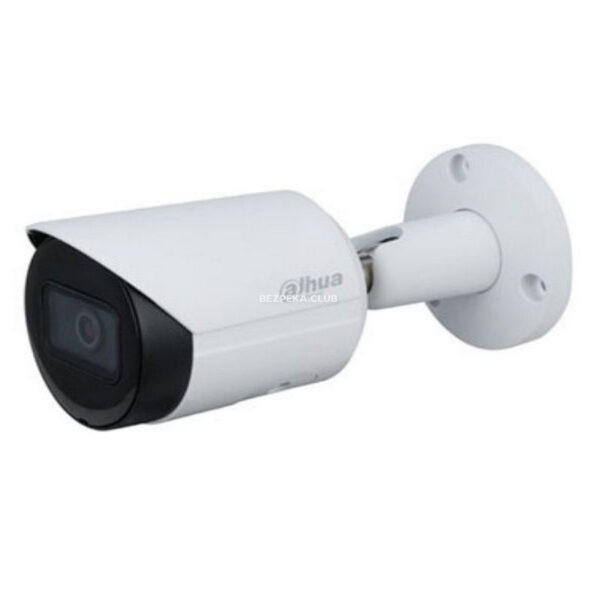

Description DAHUA IP Camera DH-2230SP-S2 2MP IR Bullet Network Camera Technical Specification Camera Image Sensor 1/2.7”2Megapixel progressive CMOS Effective Pixels 1920 (H) × 1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.005
[email protected] IR Distance 30 m (98.43 ft) IR On/Off Control Auto/Manual IR LEDs Number 1 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F1.6 F1.6 Field of View 2.8 mm: Pan: 110.0° Tilt: 59.0° Diagonal: 132.0° 3.6 mm: Pan: 91.0° Tilt: 48.0° Diagonal: 109.0° Iris Type Fixed aperture Close Focus Distance 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 37.3 m (122.38 ft) 14.9 m (48.88 ft) 7.5 m (24.61 ft) 3.7 m (12.14 ft) 3.6 mm 53.3 m (174.87 ft) 21.3 m (96.88 ft) 10.7 m (35.10 ft) 5.3 m (17.39 ft) Smart event General IVS Analytics Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG Smart Codec Yes Video Frame Rate Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart IR Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) Mirror Yes Privacy Masking 4 areas Network Network RJ-45 (10/100 Base-T) Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec User/Host 20 Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12V DC/PoE (802.3af) Power Consumption < 4.6W
