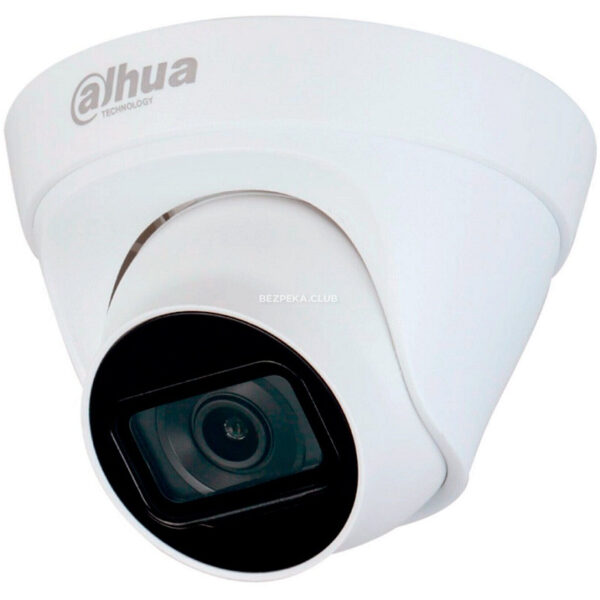

Description DAHUA IP Camera DH-1230T1P-S5 2 MP Entry IR Fixed-Focal Eyeball Netwok Camera Technical Specification Camera Image Sensor 1/2.8″ CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 16 MB RAM 64 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.01
[email protected] (Color, 30 IRE) 0.001
[email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio > 56 dB Illumination Distance 30 m (98.4 ft) (IR) Illuminator On/Off Control Auto; manual Illuminator Number 1 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture 2.8 mm: F2.0 3.6 mm: F2.0 Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal:120° 3.6 mm: Horizontal:88°; Vertical:47°; Diagonal: 104° Iris Control Fixed Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m (25.3 ft) 3.9 m (12.8 ft) 3.6 mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m (32.5 ft) 5.0 m (16.4 ft) Video Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265 ; Smart H.264 Video Frame Rate Main stream: 1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Manual; auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) Mirror Yes Privacy Masking 4 areas Alarm Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; Trusted boot; Trusted upgrade Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast Interoperability ONVIF(Profile S); CGI; P2P User/Host 6 (Total bandwidth: 36 M) Storage FTP Browser IE; Chrome; Firefox Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Certification Certifications CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Power Power Supply 12 VDC/PoE (802.3af) Power Consumption Basic: 1.4W (12 VDC); 2.2 W (PoE) Max. (ICR H.265 IR intensity): 3.5 W (12 VDC); 4.6 W (PoE) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity ≤ 95% Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F) Protection IP67 Structure Casing Inner core: Metal Plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic Product Dimensions 85.5 mm × Φ109 mm (3.4″ × Φ4.3″) Net Weight 0.24 kg (0.5 lb) Gross Weight 0.37 kg (0.8 lb) Ordering Information Type Model Description 2 MP Camera DH-IPCHDW1230T1-S5 2 MP Entry IR Fixed-Focal Eyeball Netwok Camera Accessories (optional) PFB203W Pole Mount Bracket PFA152-E Pole Mount Bracket PFA106 Mount Adapter PFB220C Ceiling Mount Bracket PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester
