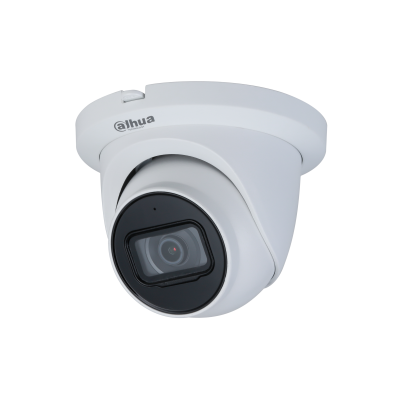

Description DAHUA IP Camera 2dh-2831tp-as-s2 8MP Lite IR Fixed-focal Eyeball Network Camera Specifications Camera Image Sensor 1/2.7″ CMOS Max. Resolution 3840 (H) ×2160 (V) ROM 128 MB RAM 256 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.009
[email protected] S/N Ratio > 56 dB Illumination Distance 30 m (98.43 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 2 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F2.0 F2.0 Field of View 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125° 3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° Iris Type Fixed Close Focus Distance 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 74.7 m (245.1 ft) 29.9 m (98.1 ft) 14.9 m (48.9 ft) 7.5 m (24.6 ft) 3.6 mm 106.7 m (350.1 ft) 42.7 m (140.1 ft) 21.3 m (69.6 ft) 10.7 m (35.1 ft) Smart event IVS Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265 / Smart H.264 Video Frame Rate Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) Stream Capability 2 streams Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711A; G.711Mu; G.726 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec User/Host 20 Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12 V DC/PoE (802.3af) Power Consumption < 7.2 W Environment Operating Conditions –40 °C to 55 °C (–40 °F to 131 °F)/less than ≤ 95% RH Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F) Protection IP67 Structure Casing Metal Dimensions 99.1 mm × Φ121.9 mm (3.9″ × Φ4.8″) Net Weight 0.48 kg (1.1 lb) Gross Weight 0.65 kg (1.4 lb)
