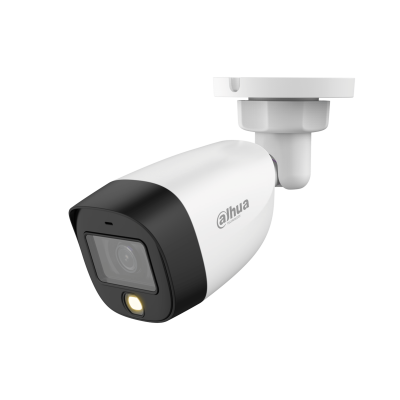

DAHUA Analog Camera DH-1509 COLOR VU Bullet & Dome

Description DAHUA Analog Camera DH-1509 COLOR VU Bullet & Dome Product Specification Brand Dahua Product Type Bullet Camera Model DH-HAC-HFW1509TP-LED Series Lite Camera Image Sensor 5MP CMOS Max. Resolution 2880 (H) × 1620 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s S/N Ratio > 65 dB Min. Illumination 0.001 Lux/F1.0, 0 Lux warm light on Illumination Distance 20 m (65.61 ft) Illuminator On/Off Control Auto; manual Illuminator Number 1 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed lens Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104° Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft) DORI Distance Lens Detect Observe Recogniz Identify 2.8 mm 67.4 m (212.3 ft) 27.0 m (88.6 ft) 13.5 m (44.3 ft) 6.7 m (22.0 ft) 3.6 mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.2 ft) Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) BLC BLC/HLC/WDR/HLC-Pro WDR 120 dB White Balance Auto; Area WB Gain Control Auto; manual Noise Reduction 3D NR Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 areas, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in mic (-A) Power Power Supply 12 V ±30% DC Power Consumption Max 4.4 W (12 V DC, warm light on) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F); < 95% (non- condensation) Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F); < 95% (non- condensation) Protection Grade IP67 Structure Casing Metal throughout the whole casing Camera Dimensions 174.5 mm × 72.3 mm × 70.6 mm ( 6.87″ × 2.85″ × 2.78″ ) Net Weight 0.36 kg (0.79 lb) Gross Weight 0.49 kg (1.08 lb) Warranty As Per Manufacturer Terms and Condition   Other Details Dimension (CM) – L x B x H   Unit of Measurement 1 Piece Weight 1.5 kg Generic Type Bullet Camera Manufacturer Details Dahua Technology Co., Ltd. No.1199, Bin’an Road, Binjiang District, Hangzhou, China. Packer Details Dahua Technology Co., Ltd. No.1199, Bin’an Road, Binjiang District, Hangzhou, China. Importer Details Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 Country of Origin China
