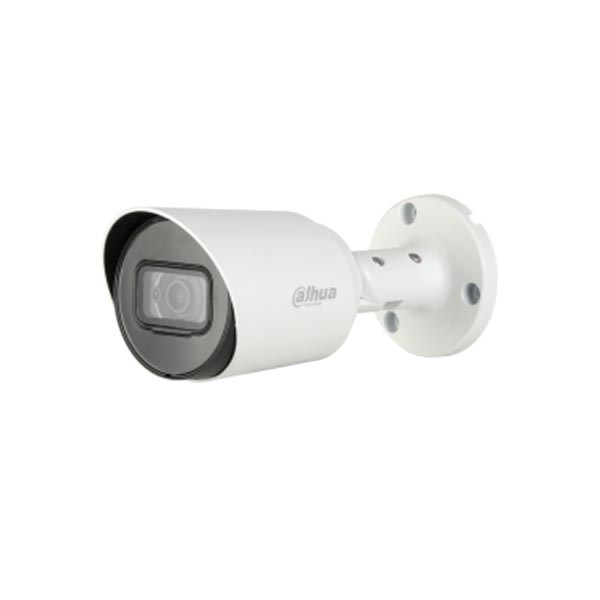

Description DAHUA Analog Camera DH-1509 Audio Bullet & Dome DH-HAC-HFW1200T-A is a Dahua 2MP Audio Analog HDCVI IR Bullet Camera Technical Specification Camera Image Sensor 1/2.7 inch CMOS Effective Pixels 2592 (H) × 1944 (V), 5Mp Scanning System Progressive Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s S/N Ratio >65dB Minimum Illumination 0.005Lux/F1.2, 0Lux White Light on Fill Light (White Light) Distance Distance up to 40 m (131.23 ft) Fill Light On/Off Control Auto; manual Fill Light Number 2 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–180° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 3.6 mm Max. Aperture F1.2 Field of View 3.6 mm: 111° × 83° × 56° (diagonal × horizontal × vertical) Iris Type Fixed iris Close Focus Distance 3.6 mm: 2.1 m (6.89 ft) DORI Distance Lens Detect Observe Recognize Identify 3.6 mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.2 ft) Video Frame Rate CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; NTSC: 5M@20fps, 4M@30fps, 1080P@30fps AHD: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps TVI: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps CVBS: PAL: 960H; NTSC: 960H Resolution 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480); BLC BLC/HLC/WDR WDR DWDR White Balance Auto; manual Gain Control Auto; manual Noise Reduction 2D NR Smart Light Yes Mirror Off/On www.dahuasecurity.com Privacy Masking Off/On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Interface Power Supply 12V ±30% DC Power Consumption Max 5.0W (12V DC, white light on) Environment Operating Temperature -40°C to 60°C (-40°F to 140°F); <95% (noncondensation) Storage Temperature -40°C to 60°C (-40°F to 140°F); <95% (noncondensation) Protection Grade IP67 Structure Casing Metal front cover plastic main body metal bracket Camera Dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3.00″) Net Weight 0.29 Kg (0.64 lb) Gross Weight 0.44 Kg (0.97 lb)
