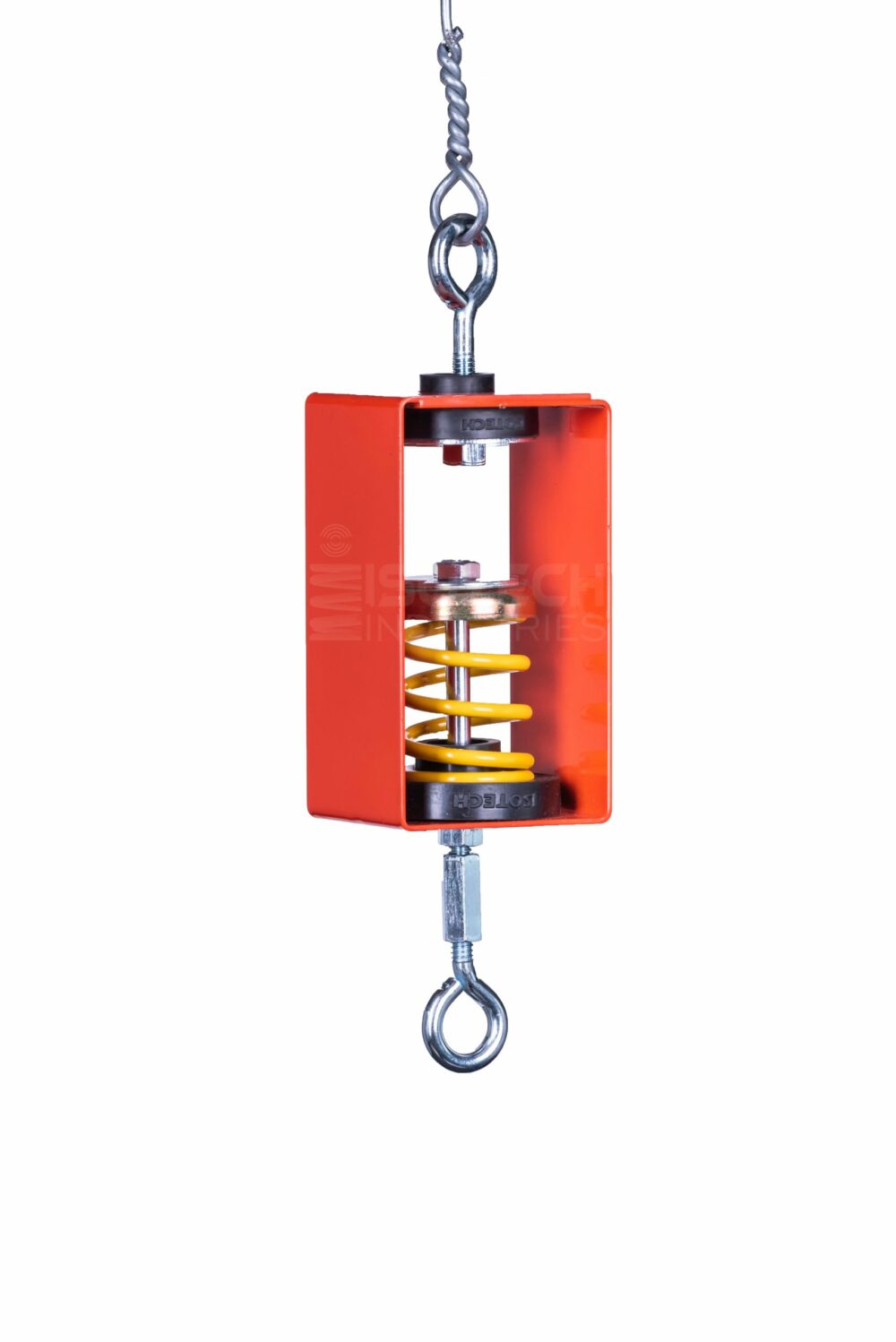

The ISOTECH® IHS-Ceiling Hanger is engineered to provide premium vibration isolation in compact spaces. With a 1-inch deflection spring and precompressed design, this hanger allows for simple installation while maintaining optimal load distribution. The powder-coated housing and color-coded springs ensure long-lasting corrosion resistance, making it ideal for demanding environments. The IHS-Ceiling hanger’s innovative design allows for a 30° misalignment of the hanger rod, offering flexibility in installation. Featuring a minimum Kx/Ky ratio of 0.8, the hanger is designed with additional travel to solid equal to 50% of the rated deflection, ensuring safety under solid load. The spring is securely supported by a neoprene cup, aligned with a neoprene element, to maximize vibration isolation and minimize noise transfer. Highlights: 1″ deflection spring with precompressed design for easy installation Allows 30° rod misalignment for versatile mounting Powder-coated, corrosion-resistant housing with color-coded springs 3/8-0.5 inch gap upon spring loading for optimized performance Neoprene components for superior vibration and noise isolation Load 15 30 50 75 100 125 150 200 Element/Cup N/A Cup w/ Element Neoprene Spring Cup Neoprene in shear Element Accessory D: Deck Support G: Grid Support Add-On BE: Bottom Eyebolt EE: Top and Bottom Eyebolt N/A TE: Top eyebolt
