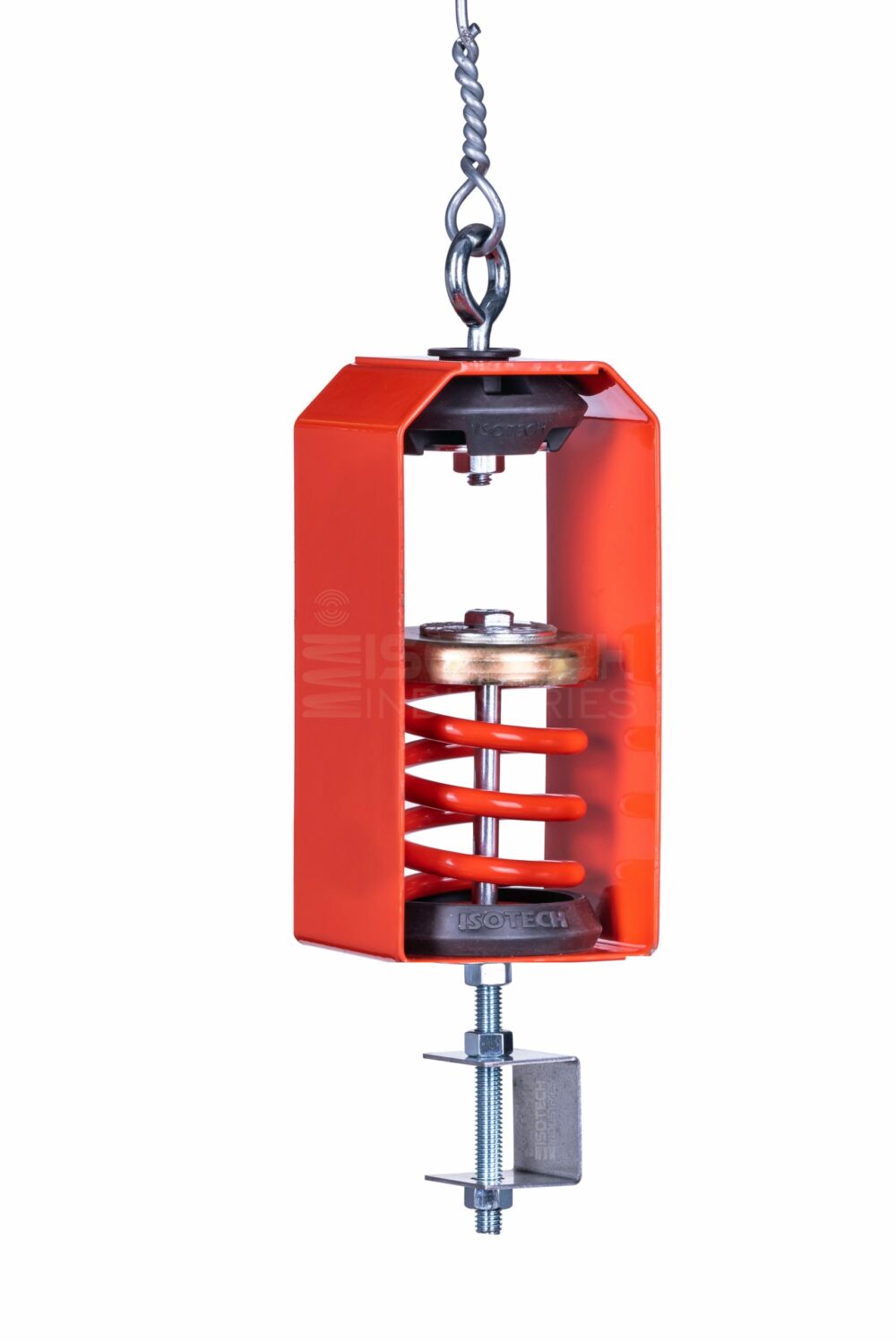

ISOLATION HANGERS (IHA) ISOTECH® IHA Ceiling Hangers are designed to provide vibration control for suspended HVAC equipment, piping, ductwork, and electrical components that generate noise and vibration. Featuring a 1” deflection color-coded spring, each hanger is housed in a powder-coated finish for maximum durability and corrosion resistance. With a capacity range from 30 to 600 lbs, these hangers are ideal for a wide variety of installations. Engineered to accommodate up to 30 degrees of misalignment, the IHA models prevent contact between the hanger rod and isolator housing, ensuring optimal performance. Designed specifically for low-frequency noise and equipment with low RPM, these hangers are perfect for environments where sound isolation is critical. Load 30 50 100 150 200 300 400 500 600 Element/Cup N/A Cup w/ Element Neoprene Spring Cup Neoprene in shear Element Accessory D: Deck Support G: Grid Support Add-On BE: Bottom Eyebolt EE: Top and Bottom Eyebolt N/A TE: Top eyebolt
